IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5-9
5-1-9 Wiring

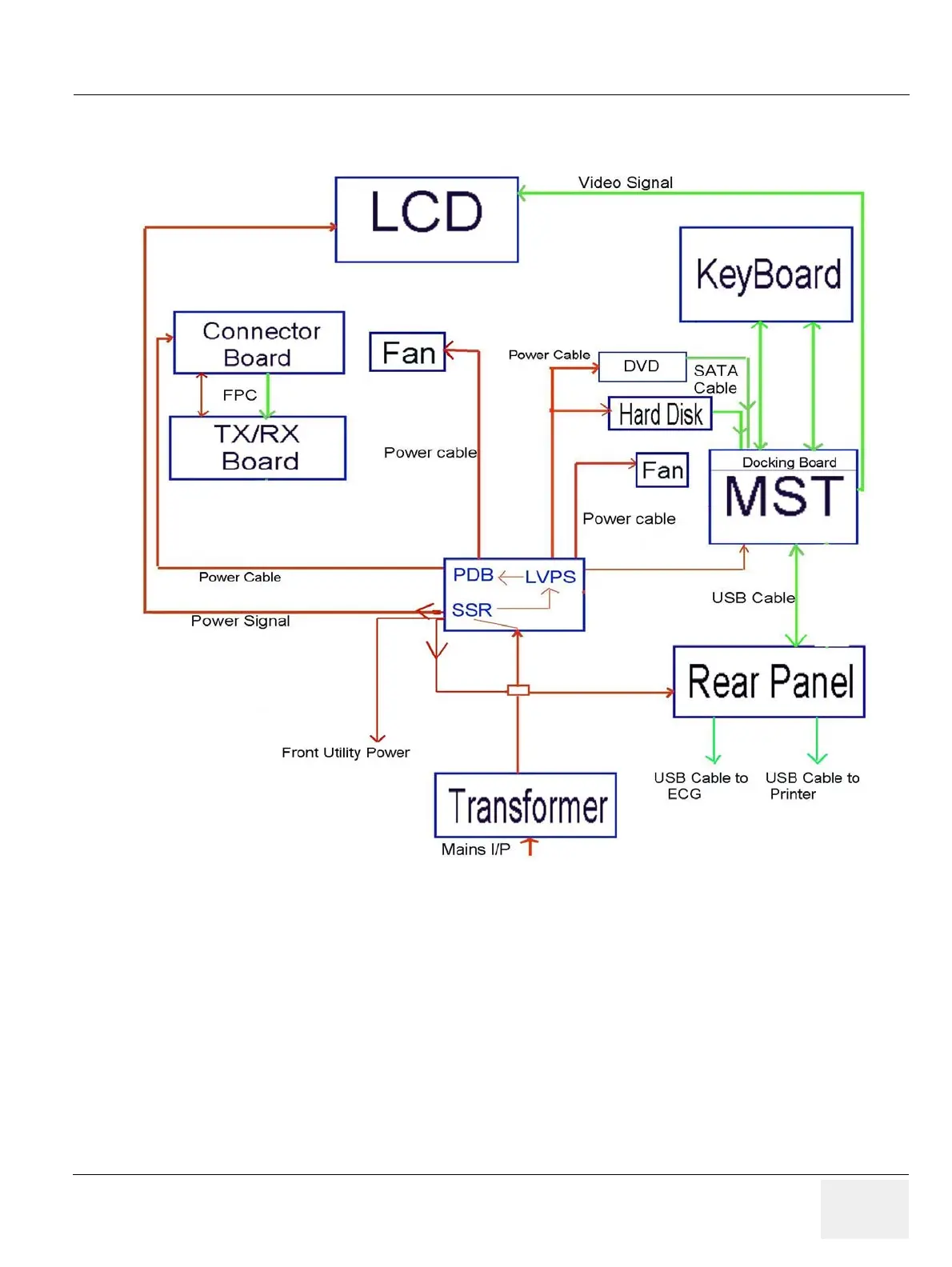

Figure 5-7 Wiring Diagram (LOGIQ P3)
• TX64: LOGIQ P3 Transmit board
• RX64: LOGIQ P3 Front end processing board
• MST: LOGIQ P3 Master board
• PWR SW: Power Switch
• FPC: Flexible Print Circuit board
• PDB: Power Distribution Board
• SSR: Solid State Relay
To Next Page
