IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 3 Installation 3-13
3-5-2-3 Scanner Shutdown

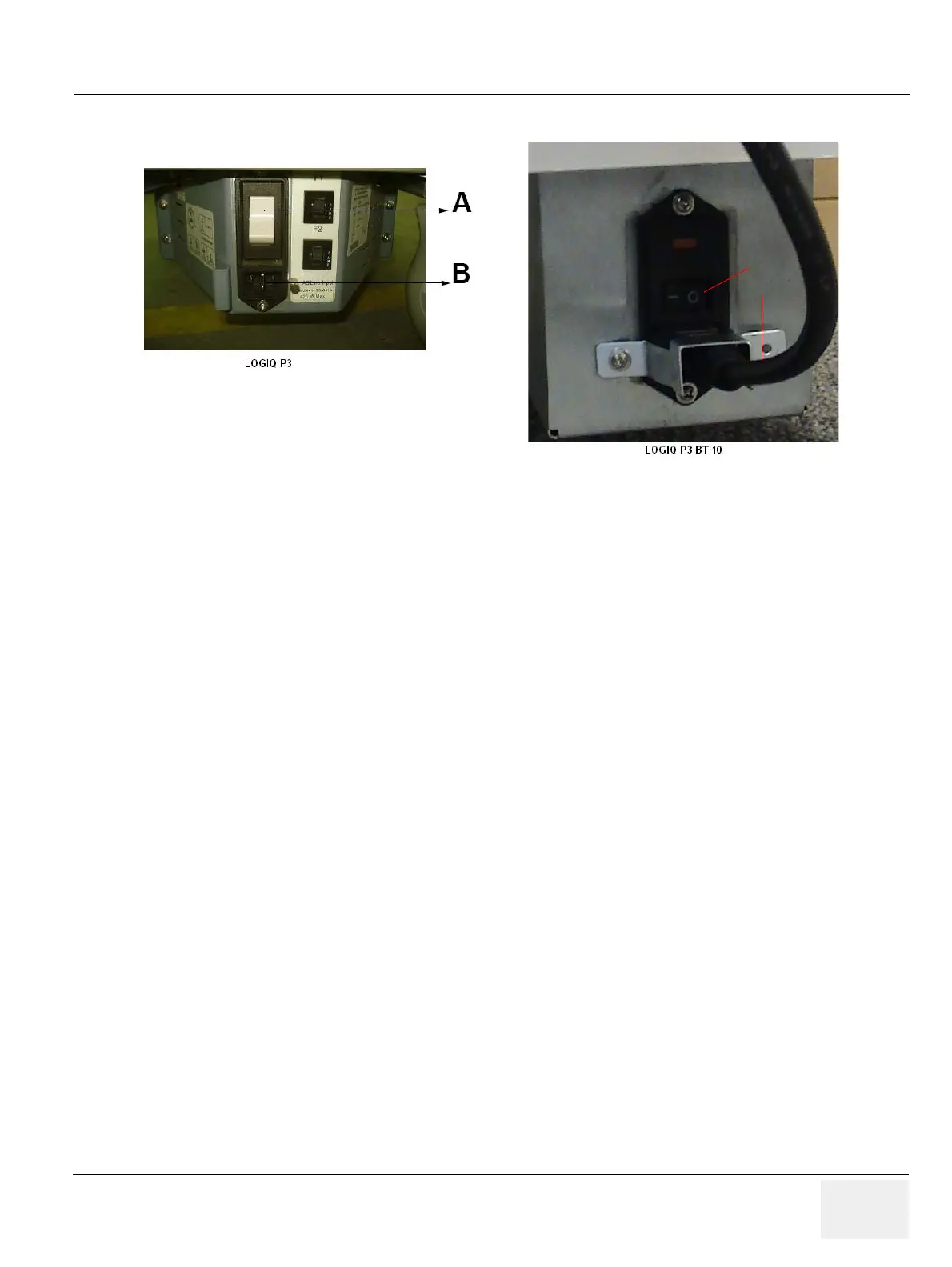

Figure 3-11 Scanner Shutdown
1.) Switch OFF the Circuit Breaker at the back of the system.
2.) Disconnect the Mains Power Cable if necessary. For example: Relocating the scanner.
3-5-3 Transducer Connection
1.) Connect a transducer to the upper transducer receptancle as follows:
A.) Ensure that the transducer twist lock lever points horizontally.
B.) Insert the transducer connector on the receptacle guide pin until it touches the receptacle mating
surface.
C.) Twist the transducer lock lever vertically to lock it in place.
D.) Twist the lever to the horizontal position to disconnect the transducer.
