IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-83
Section 8-9
DVD Drive
8-9-1 DVD Drive ( FRU P/N: 5312274 or 5371456 or 5399652 or 5460475/5504633) / DVD
Cover Lakshya (FRU P/N: 5310097)
This is a description on how to remove and replace the CD Tray Assembly.
8-9-1-1 Tools
• Common phillips screwdrivers
8-9-1-2 Needed Manpower
• 1person, 15 minutes
8-9-1-3 Preparations
Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-9-1-4 Removal Procedure
1) Loosen two screws and Remove the DVD tray assembly. Refer Figure 8-89 on page 8-83
2) Disconnect the cables connected to the DVD drive.
3) Remove the DVD drive from the DVD tary by removing the four screws holding it. Refer Figure 8-89
on page 8-83

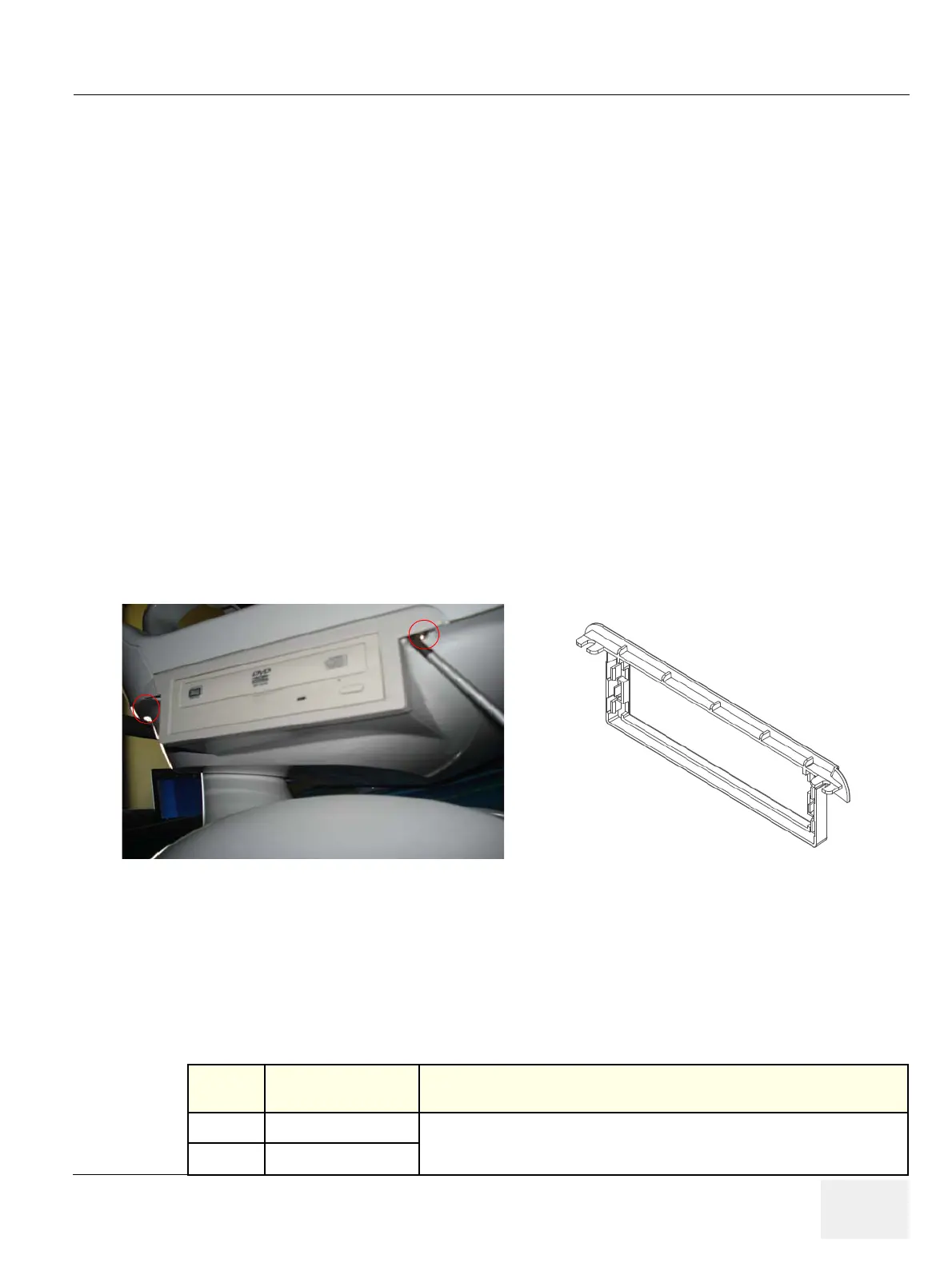

Figure 8-89 Removal CD drive Assembly
8-9-1-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-9-1-6 Functional Checkout Procedure
See
Section
Functional Test Debrief Script
4-3-1 Power On/Boot Up
Service Manual Direction 5308917-100, Section 8-10-1. Equipment passes all
required tests and is ready for use.
4-3-2 Power Off/ Shutdown
