IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-9
8-2-6 Handle P3 Console (FRU P/N: 5315120)
This is a description on how to remove and replace the Handle P3 console Assembly.
8-2-6-1 Tools
• Common phillips screwdrivers; Allen Key Set.
8-2-6-2 Needed Manpower
• 1 person, 15 minutes
8-2-6-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-2-6-4 Removal procedure
1) Remove keyboard Top cover and Pull out the keyboard top assembly cover by the slot marked in the
Figure 8-9 on page 8-9
2) Remove Gel holder and probe holder. Refer section 8-3-1 on page 30) Using the allen key set remove
Handle P3 console by unfastening the two socket head fasteners
marked (1,2,3) in the Figure 8-9 on page 8-9

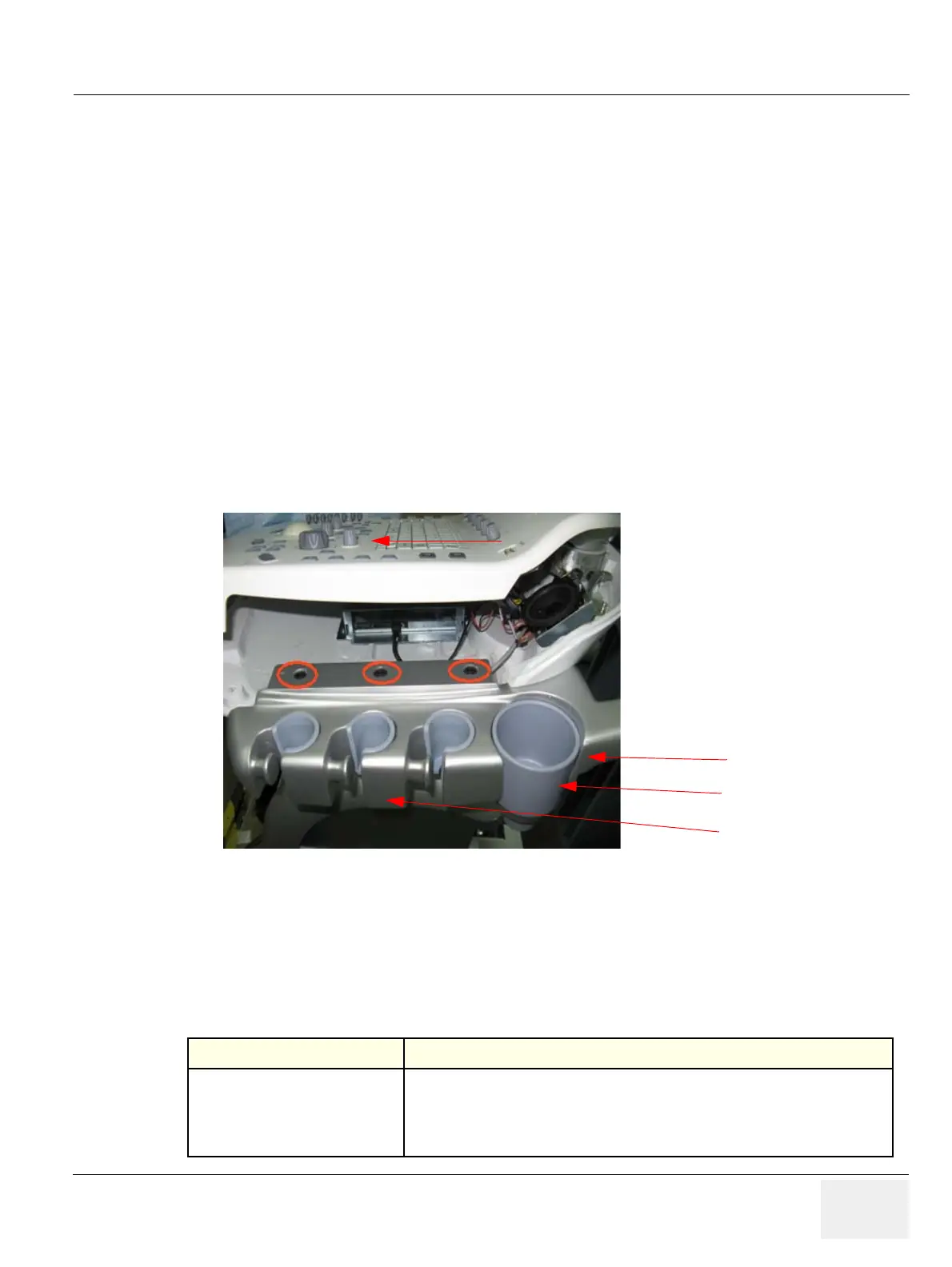

Figure 8-9 Handle P3 console
8-2-6-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-2-6-6 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5308917-100, Section 8-2-5. Equipment passes all required
tests and is ready for use.
handle P3 console
Gel holder
Probe holder
