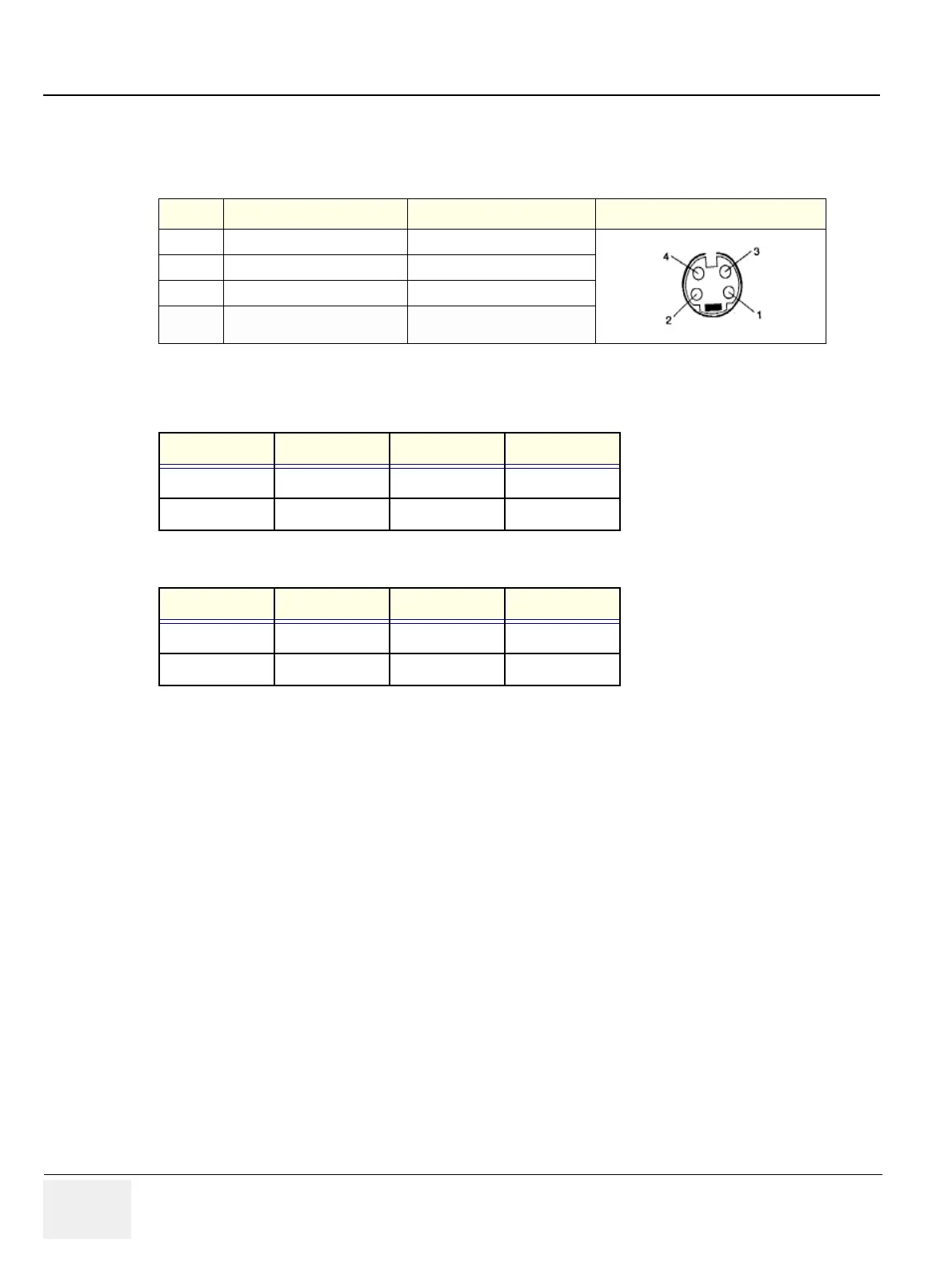

3-18 Section 3-6 - System Configuration
3-6-4-3 This section indicates the pin assignment for each connector.
1. S- Video Connector: 4 Pin, mini-Din
Table 3-8
S-Video Connector, 4 Pin
2. Pin Assignment of USB
Table 3-9 Pin assignment of USB1
Table 3-10 Pin assignment of USB2
Pin No Output Signal Description Picture
1 SVIDEO OUT/IN YG Y (Luma) GND
2 SVIDEO OUT/IN CG C (Chroma) GND
3 SVIDEO OUT/IN Y Y (Luma) SIGNAL
4 SVIDEO OUT/IN C C (Chroma) SIGNAL
Pin No. Signal Pin No. Signal
1 +5VDC 3 DATA+
2 DATA- 4 GND
Pin No. Signal Pin No. Signal
1 +5VDC 3 DATA+
2 DATA- 4 GND
