IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-39
8-4-5 Top Cover (FRU P/N: 5315121)
This is a description on how to remove and replace the Top cover Assembly.
8-4-5-1 Tools
Common Phillips screwdrivers
8-4-5-2 Needed Manpower
1person, 15 minutes
8-4-5-3 Preparations
Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-5-4 Removal Procedure
1) Remove the LH-side cover from the system. Refer section 8-4-2 on page 34
2) Remove the RH-side cover from the system. Refer section 8-4-1 on page 32
3) Remove the Front cover from the system. Refer section 8-4-4 on page 37
4) Remove the Rear cover from the system. Refer section 8-4-7 on page 43
5) loosen two screws (A.B) in front side of top cover from the system. Refer Figure 8-43 on page 8-39

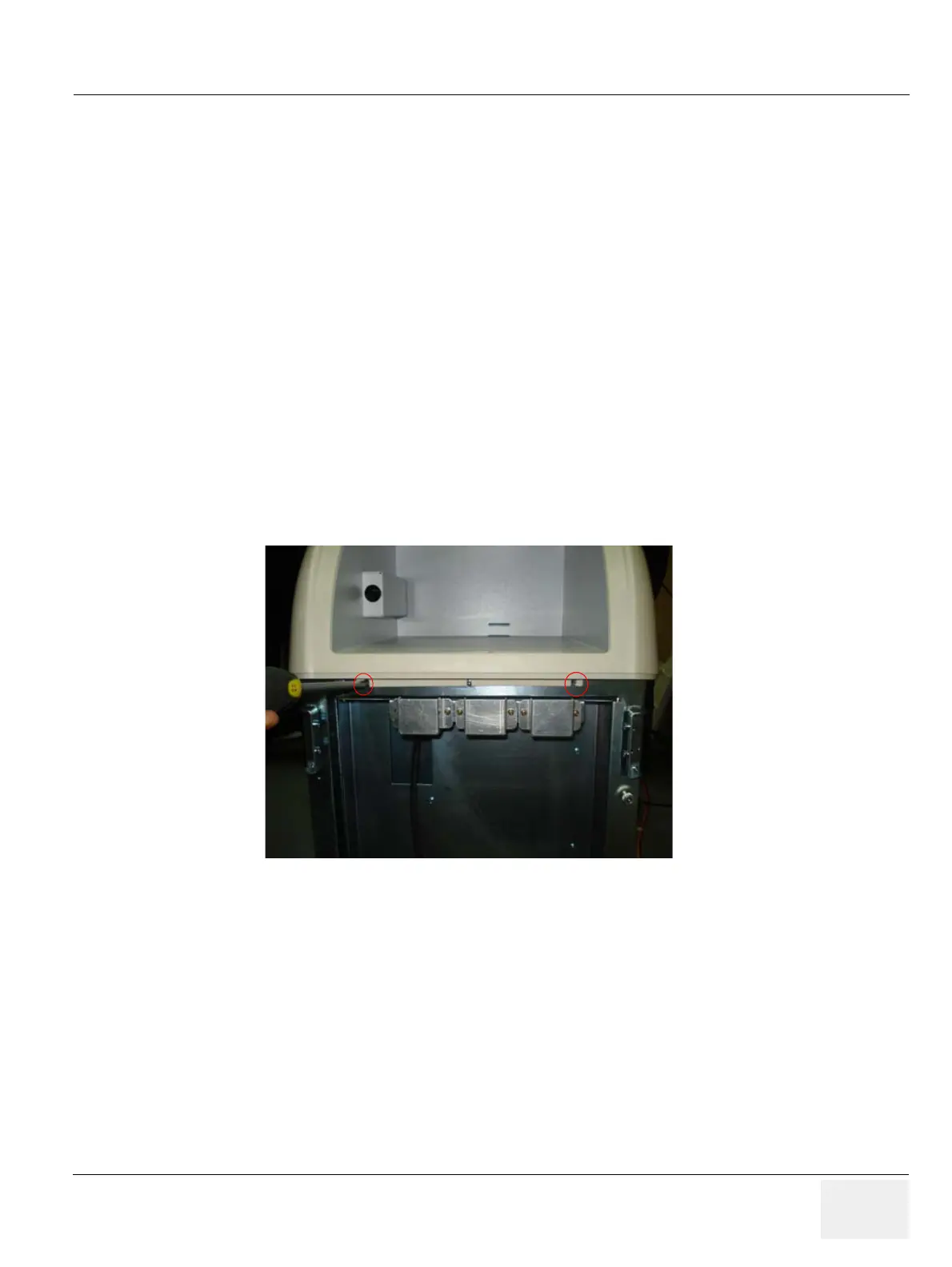

Figure 8-43 Top cover
A
B
