GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-40 Section 8-4 - Mechanicals
6) Remove the LH-side Emi cover and remove two screws from LH -side Bottom of the top assembly of
the system.Refer Figure 8-44 on page 8-40

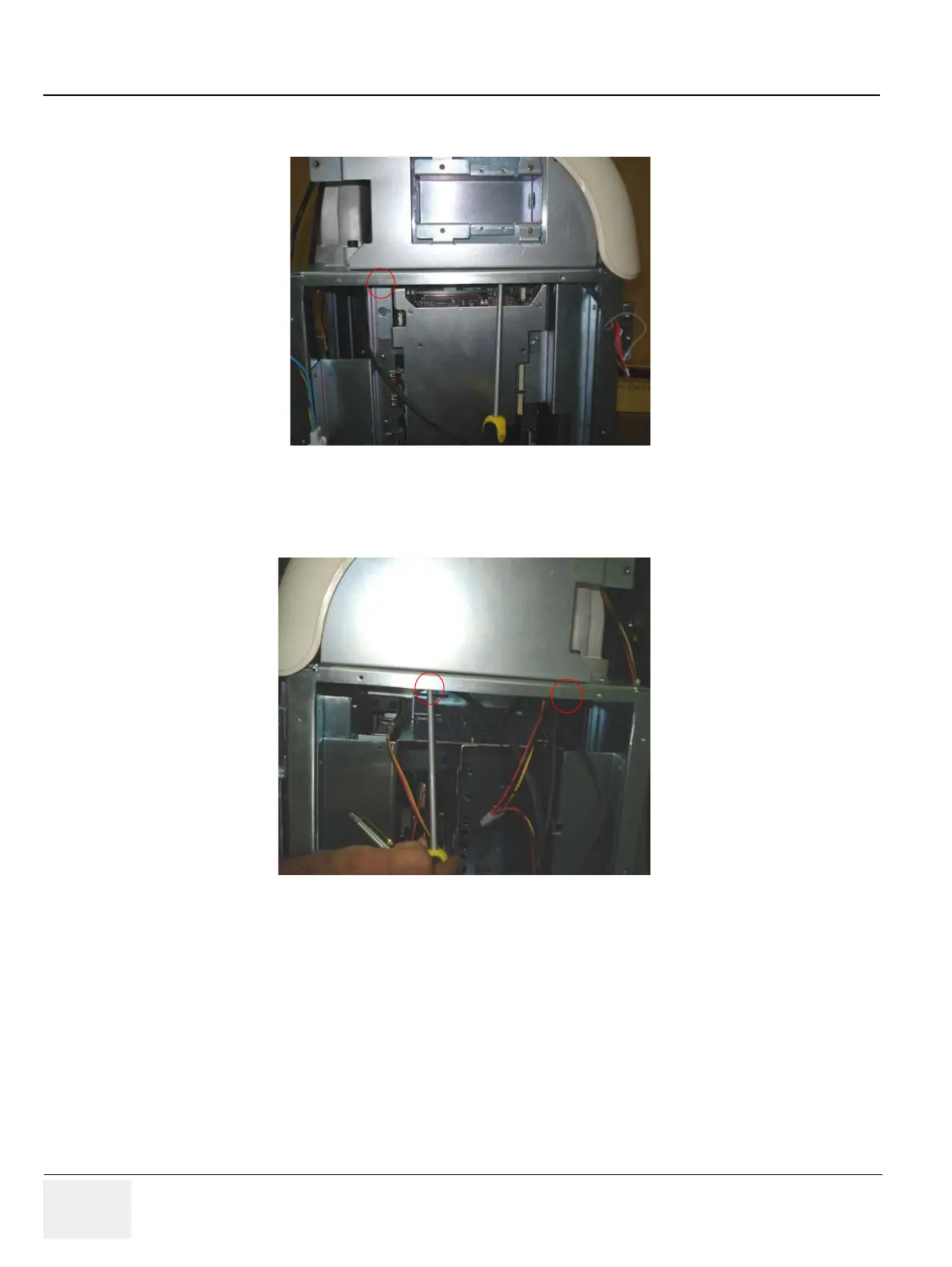

Figure 8-44 Removing screw top assembly
7) Remove RH-side Emi cover and remove two screws from RH -side bottom of the top assembly of the
system. Refer Figure 8-45 on page 8-40
Figure 8-45 Removing screw top assembly
