8-32 Section 8-4 - Mechanicals
Section 8-4Mechanicals
8-4-1 RH Side Cover (FRU No :5315115)
This is a description on how to remove and replace the Right Cover.
8-4-1-1 Tools
• Common Torx screwdrivers
8-4-1-2 Needed Manpower
• 1 person, 15 minutes
8-4-1-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-1-4 Removal Procedure
1) Remove the screw cap of four places(1,2,3,4,) on RH-side cover of the system.
Refer Figure 8-34 on page 8-32
2) Remove the RH-side cover from the system. Refer Figure 8-34 on page 8-32

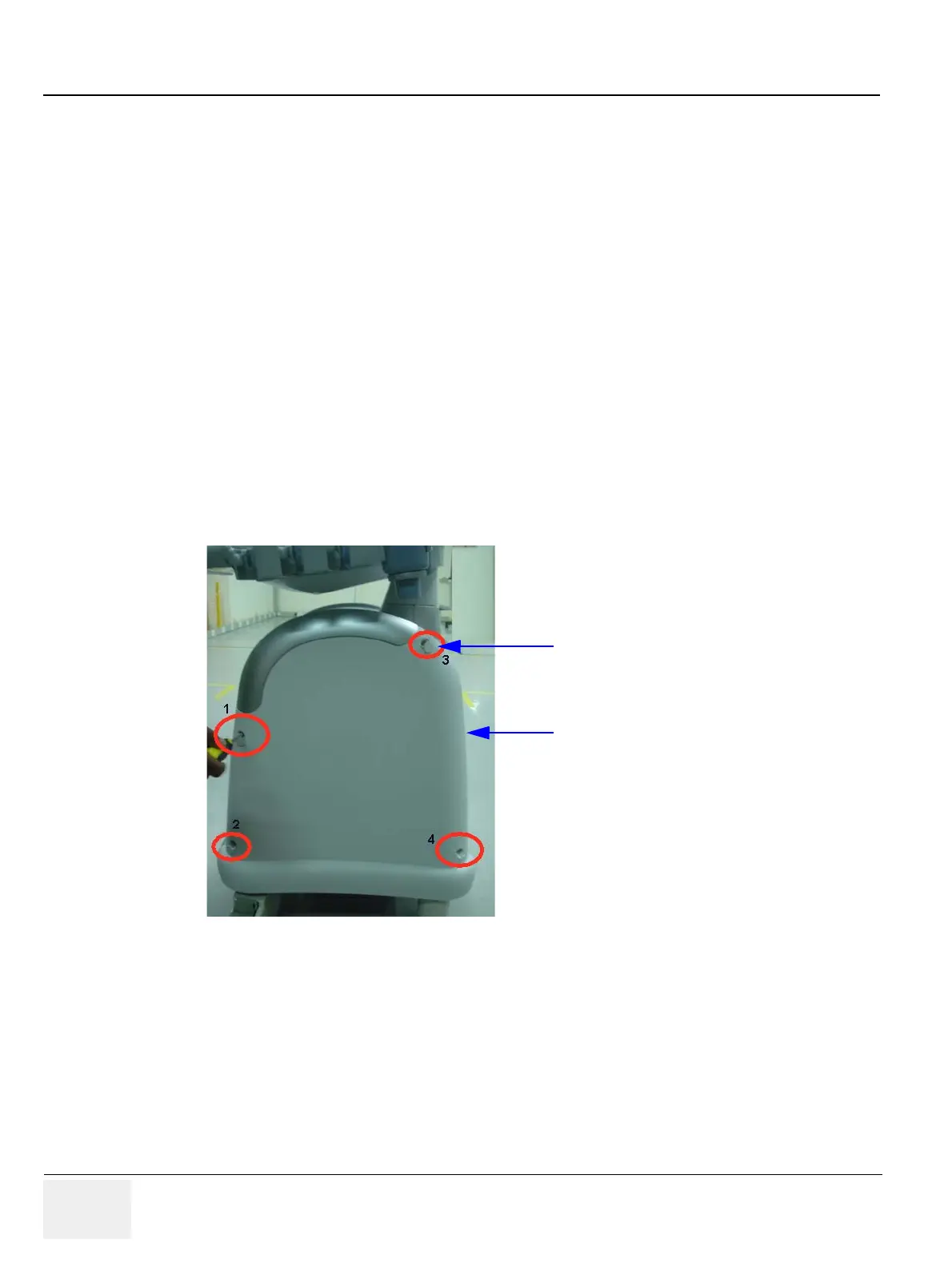

Figure 8-34 RH-side cover
3) Remove the RH-side cover four screws(1, 2, 3, 4) of the system. Refer Figure 8-35 on page 8-33
To Next Page
