Chapter 8 Replacement
Procedures
8-77

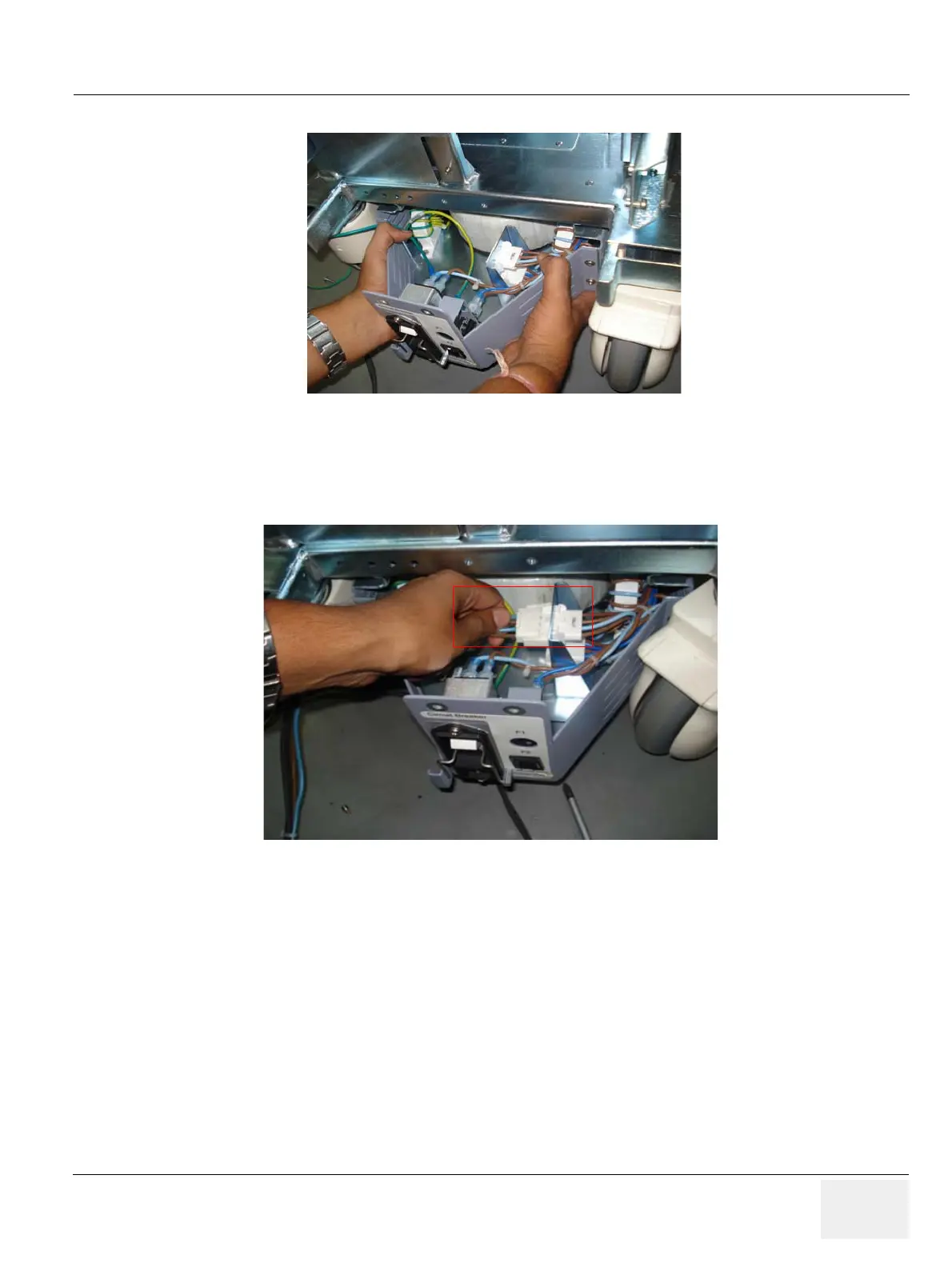

4) Pull out the transformer tra
y assembly from the system. Refer
Figure 8-84 on
page 8-77
Figure 8-84 Removing T
ansformer As
sembly
5) Pull out the transformer tra
y so the connector
marked J4 is accessible and disconn
ect cable.
Refer
Figure 8-85 on p
age 8-77
Figure 8-85 Removing
T
ransformer cable
270
272
