GE LOGIQ P3 PRO

GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-20 Section 8-2 - Disassembly/Re-assembly of LOGIQ P3

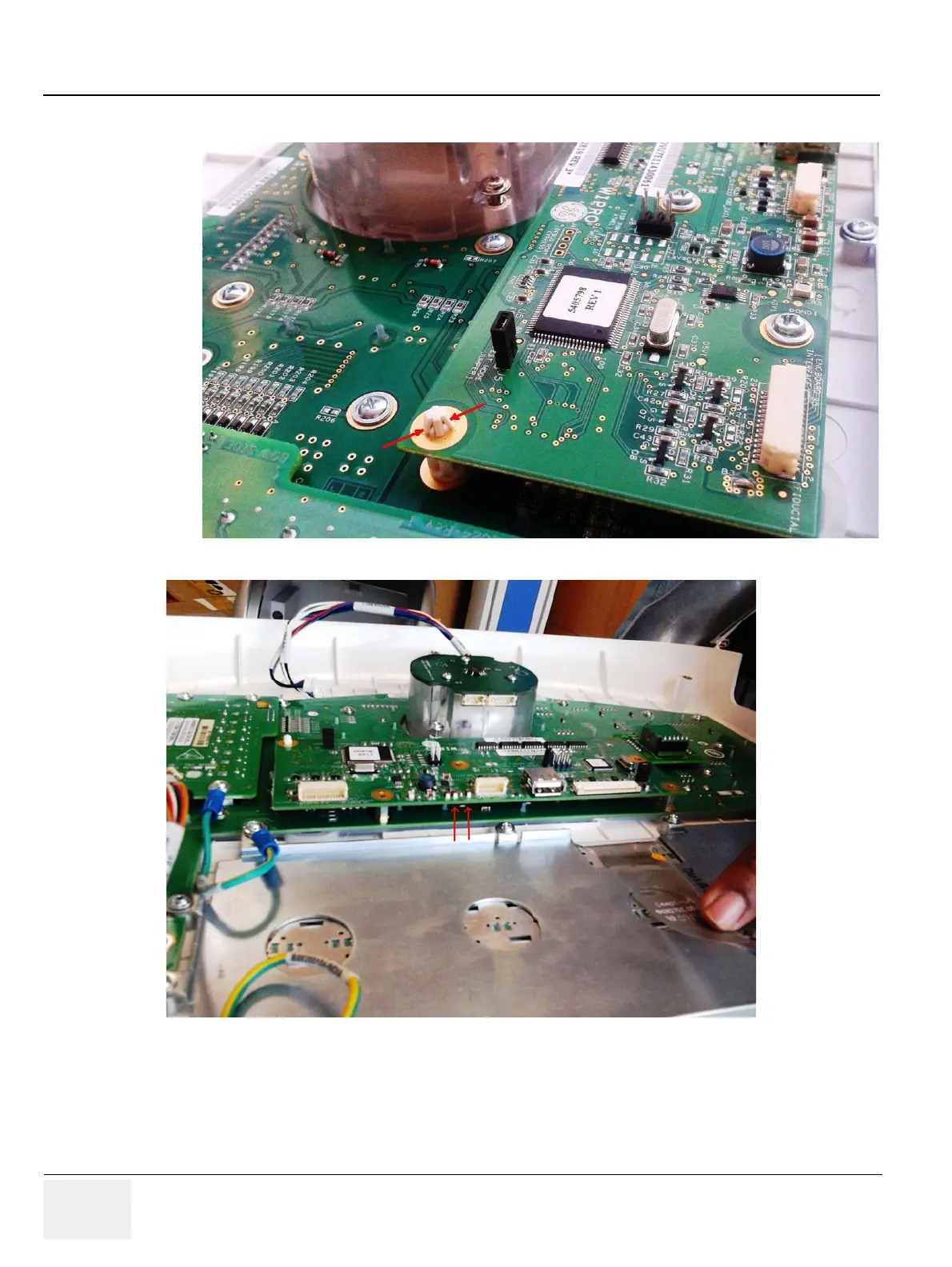

3.) Push the notch in the direction shown in the Figure 8-21 below and then pull the controller board to
remove from the main keyboard assembly as shown in Figure 8-22 and Figure 8-23.
Figure 8-21
Figure 8-22
