GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
4 - 34 Section 4-8 - Mechanical Function Checks
4-8-6 New articulation arm with cover Function Validation Procedure
• Check if the lock operates properly.
• Check if the swivel motion operates properly.
• Check if the up and down motion operates properly.

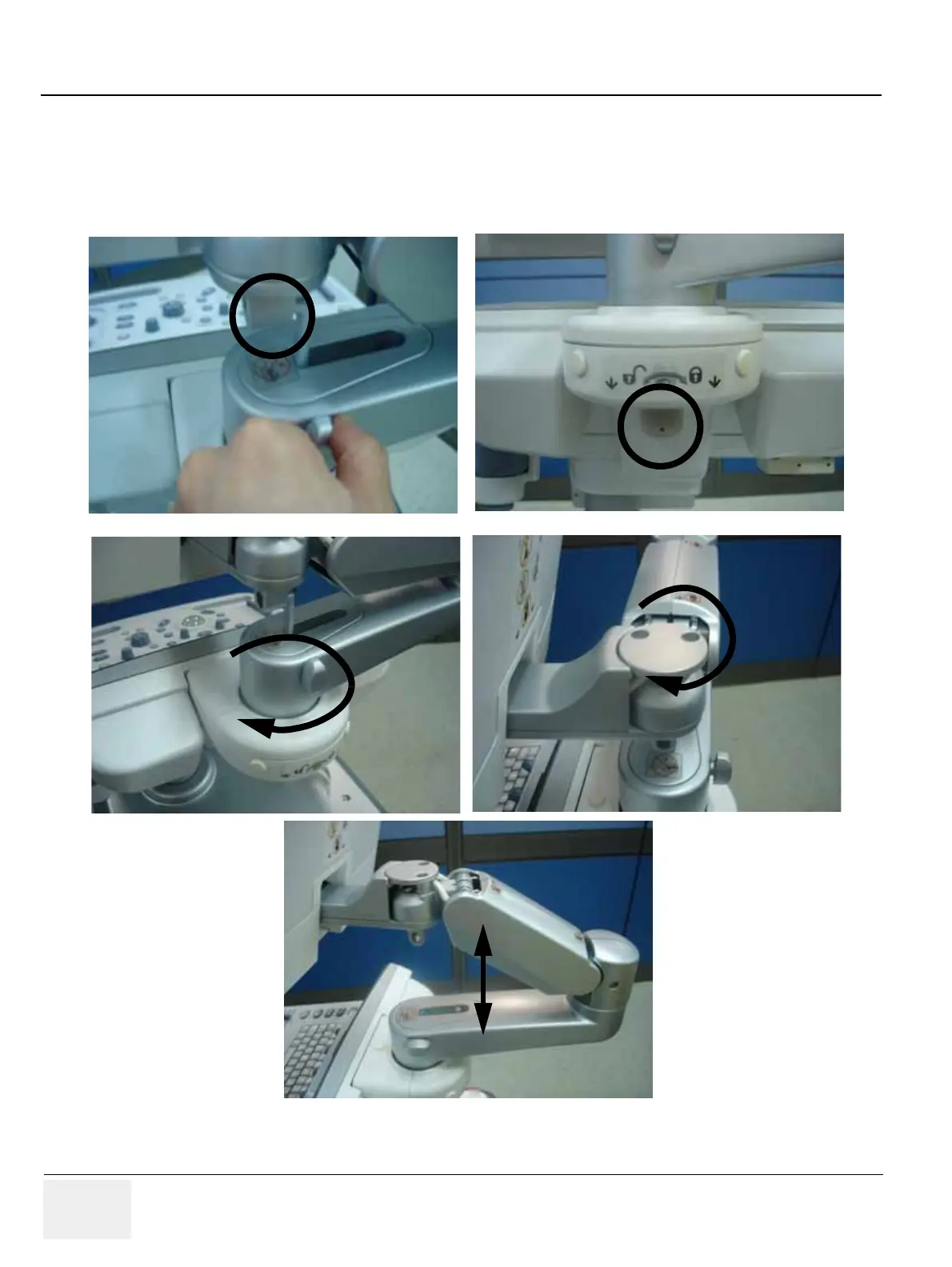

Figure 4-34
