DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 5-1 - Overview 5 - 17
Section 5-5
P6 ARP II (Rear Panel)
The LOGIQ™ P6/P6 Pro system has the I/O interfaces for peripherals in rear panel. P6 ARP II assy has
connectors for peripheral. Composite in/out and S-VHS in/out are analog video interfaces for recording
and playback of the VCR or DVD recorder. Audio in/out are audio interfaces for audio recording and
playback of the VCR or DVD recorder. The analog VGA signal also provide display interface for external
VGA monitor .

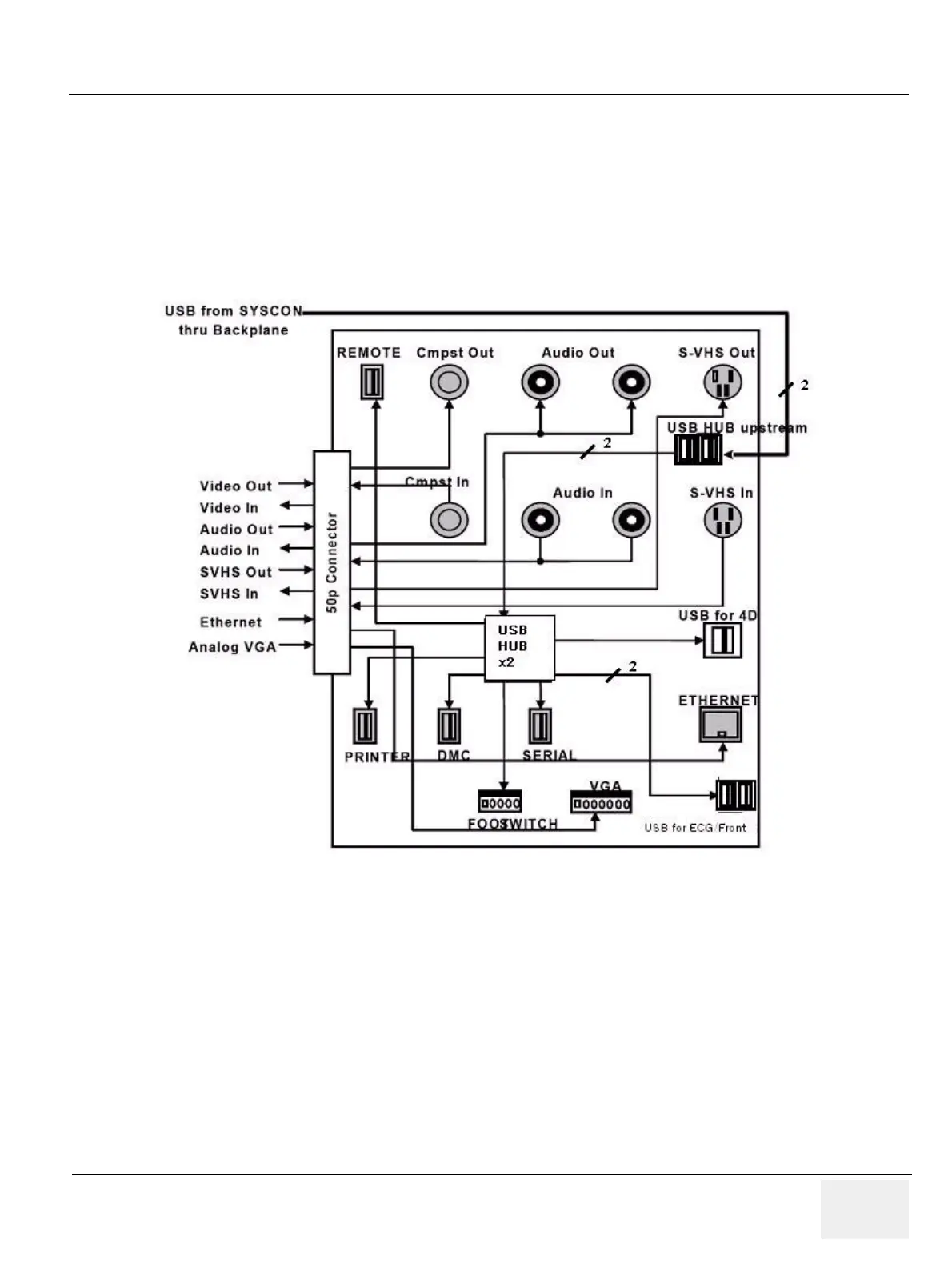

Figure 5-16 P6 ARP II Block Diagram

GE LOGIQ P6 Specifications

General

Type	Ultrasound System
Connectivity	DICOM, USB, Ethernet
Applications	Obstetrics, Gynecology, Vascular, Cardiology, Musculoskeletal
Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler
Portability	Mobile
Transducer Ports	3 active ports
