DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
7 - 8 Section 7-4 - Diagnostics
Section 7-4
Diagnostics
As described in "Components and Functions (Theory)" on page 5-1, the service platform uses a web-
based user interface (UI) to provide access to common service components.
The Diagnostic home page displays a listing of test categories consisting of Common Diagnostics, and
LOGIQ™ P6/P6 Pro Diagnostics. Expand the desired main category to select groups or individual tests.

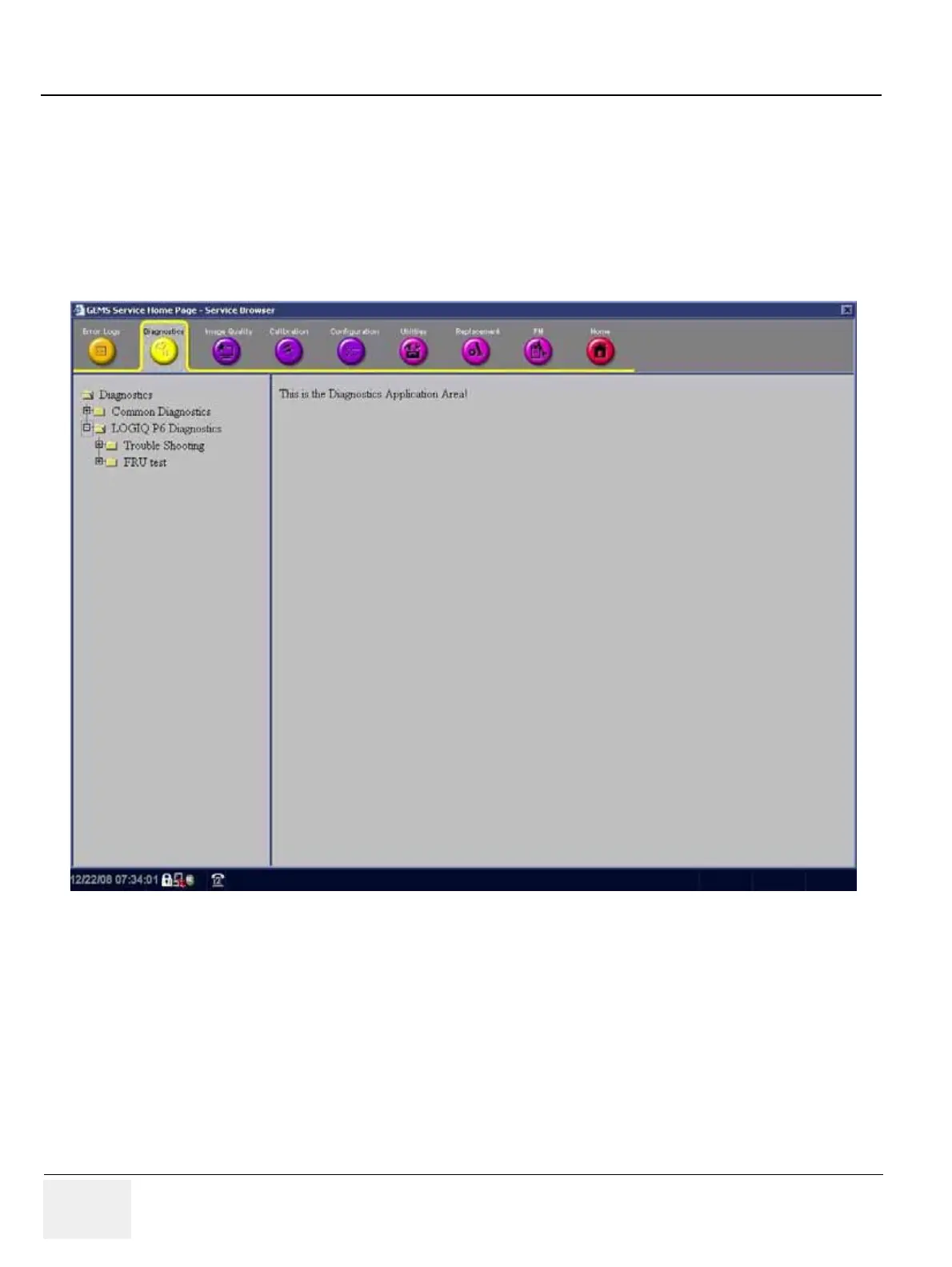

Figure 7-6 Global Service User Interface Diagnostic Screen
