4 - 38 Section 4-9 - Board Function Checks
4-9-3 CWD64 Assy Function Validation Procedure
1.) Insert the Sector probe in probe port.
2.) Turn on the system.
3.) Press Virtual Convex button to enable Virtual Convex if not already enabled.

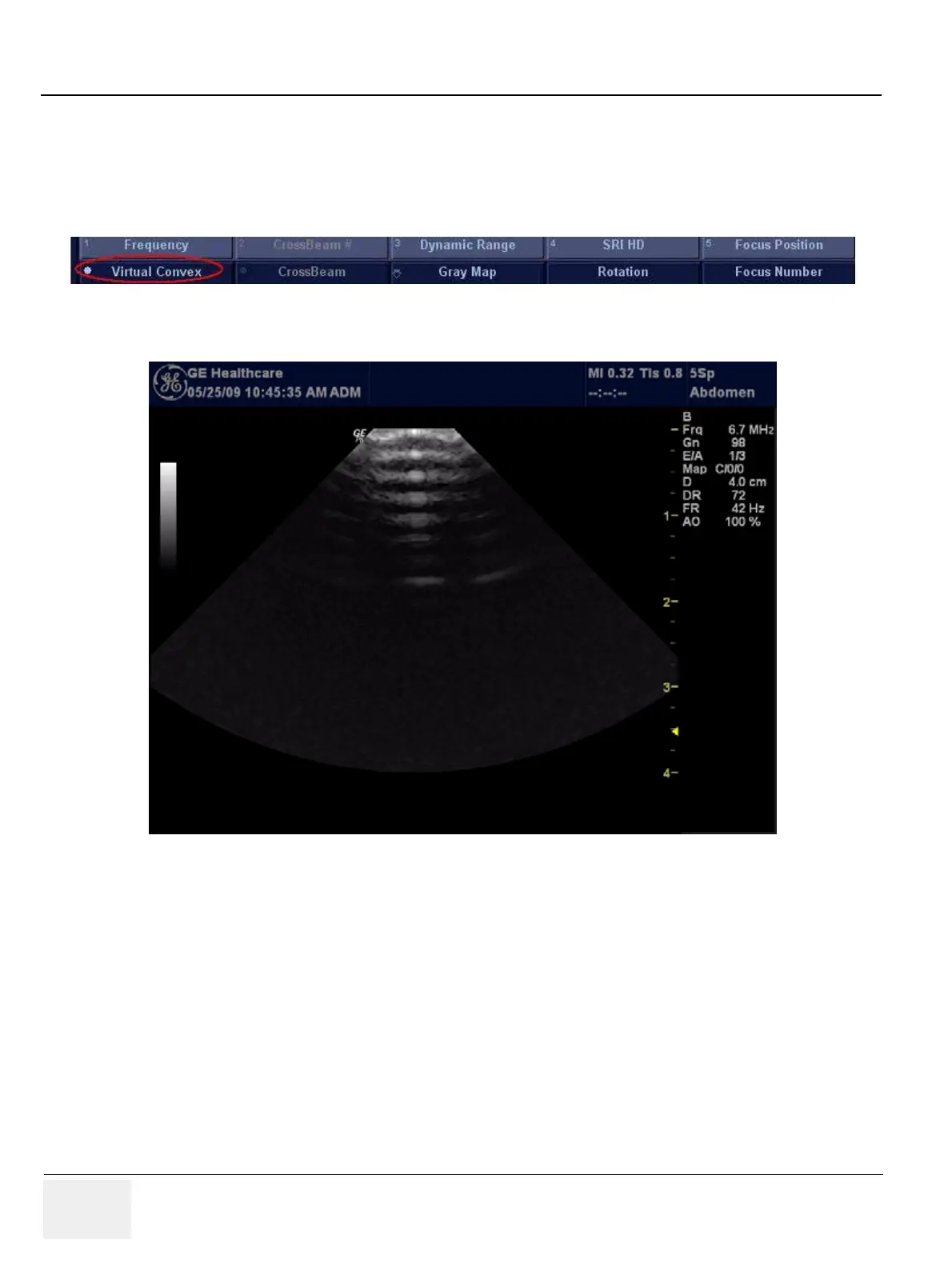

Figure 4-37 Vitrual Convex Enabled
Figure 4-38 Virtual Convex
