Section 4-9 - Board Function Checks 4 - 45
4-9-9 Nest fan Function Validation Procedure
1.) After replace Nest fan assy, turn on the system. Refer to the 3-5-1 "Power On/Boot Up" on page 3-
11.
2.) Confirm the fan rotating with naked eye and check the fan operating by rotating sound. No strange
sound should be heard.
NOTE: Do not close the right EMI bracket and right plastic cover before check the fan operation.
4-9-10 Transbox/ Fan Function Validation Procedure
1.) After replace Transbox fan assy, turn on the system. Refer to the 3-5-1 "Power On/Boot Up" on
page 3-11.
2.) Confirm the fan rotating by feeling wind. Refer to the figure below.
NOTE: Remove right side dusty filter and check the fan operation.

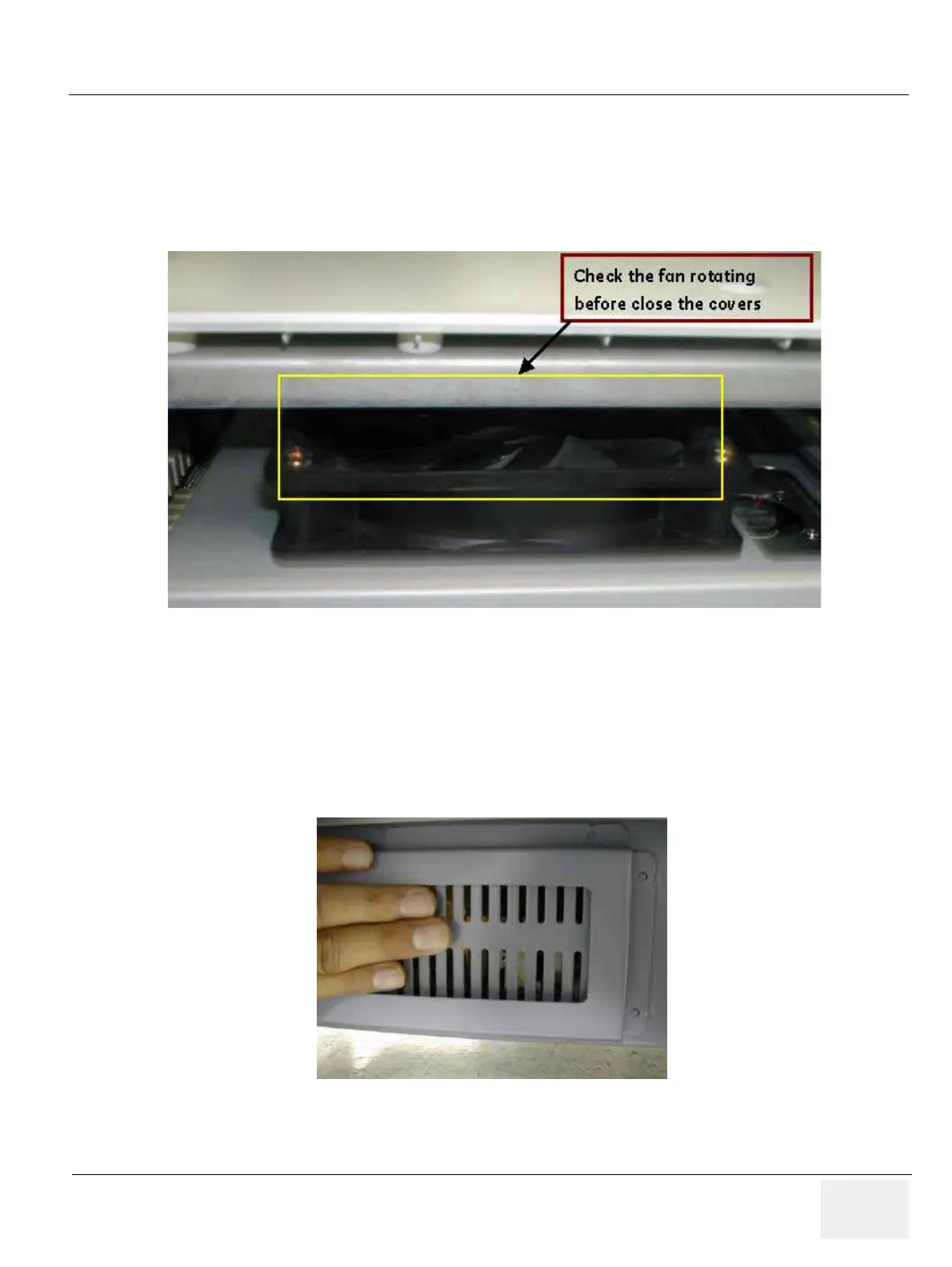

Figure 4-45 Checking Nest fan rotating
Figure 4-46 Checking Transbox fan rotating
