GE LOGIQ P6 Service Manual
4
of 1
of 1 rating
478 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
GE H
EALTHCARE
D
IRECTION
5245279, R
EVISION
3
LOGIQ™ P6/P6 P
RO
S
ERVICE
M
ANUAL
Section 5-1 - Overvie
w
5 - 15
5-4-2
LOGIQ™ P6/P6 Pro Monitor
LOGIQ™ P6/P6 Pro system has 17inch
LCD monitor with
DVI-I interface.
5-4-2-1
MON
ITOR Signal I/O
Monitor assy has two main I/O connectors, One is a DVI-I connector, and the other is a 110V/220V
power plug.

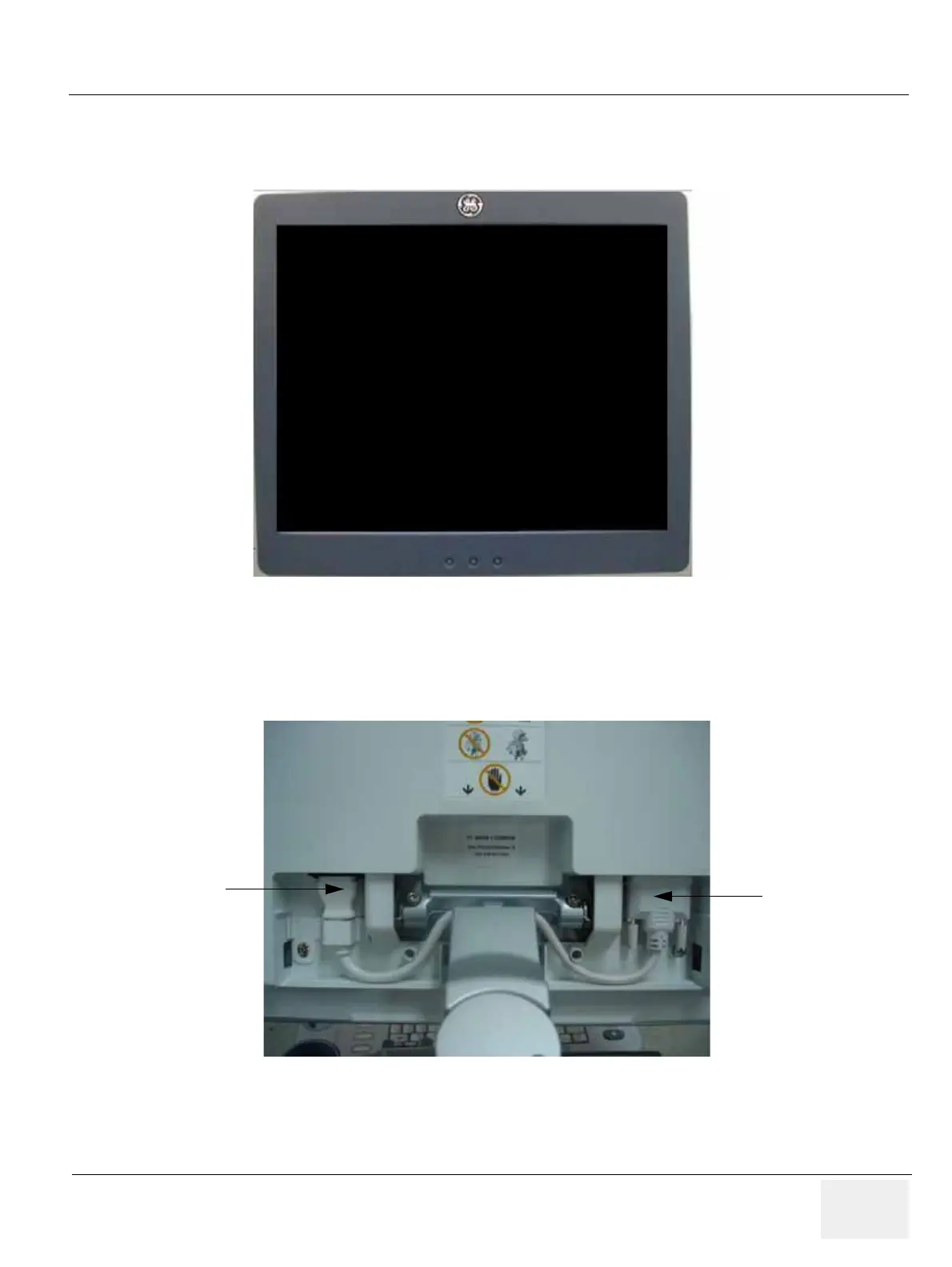

Figure 5-12 LOGIQ™ P6/P6 Pro Monitor
Figure 5-13 LP6 17” LCDMON Signal I/O
DVI
PWR
144
146
