5-4-2-2 LOGIQ™ P6/P6 Pro LCDMON control button function
LOGIQ™ P6/P6 Pro LCDMON assy has three control buttons: Left button, Menu button, Right button.
Push "Menu" button to select the mode between Contrast, Brightness, and Dim Brightness mode. Then
hold down "Left" and "Right" button until the value you want is set. The default values are 80% for the
contrast, 80% for the Brightness, and 50% for the Dim-Brightness.

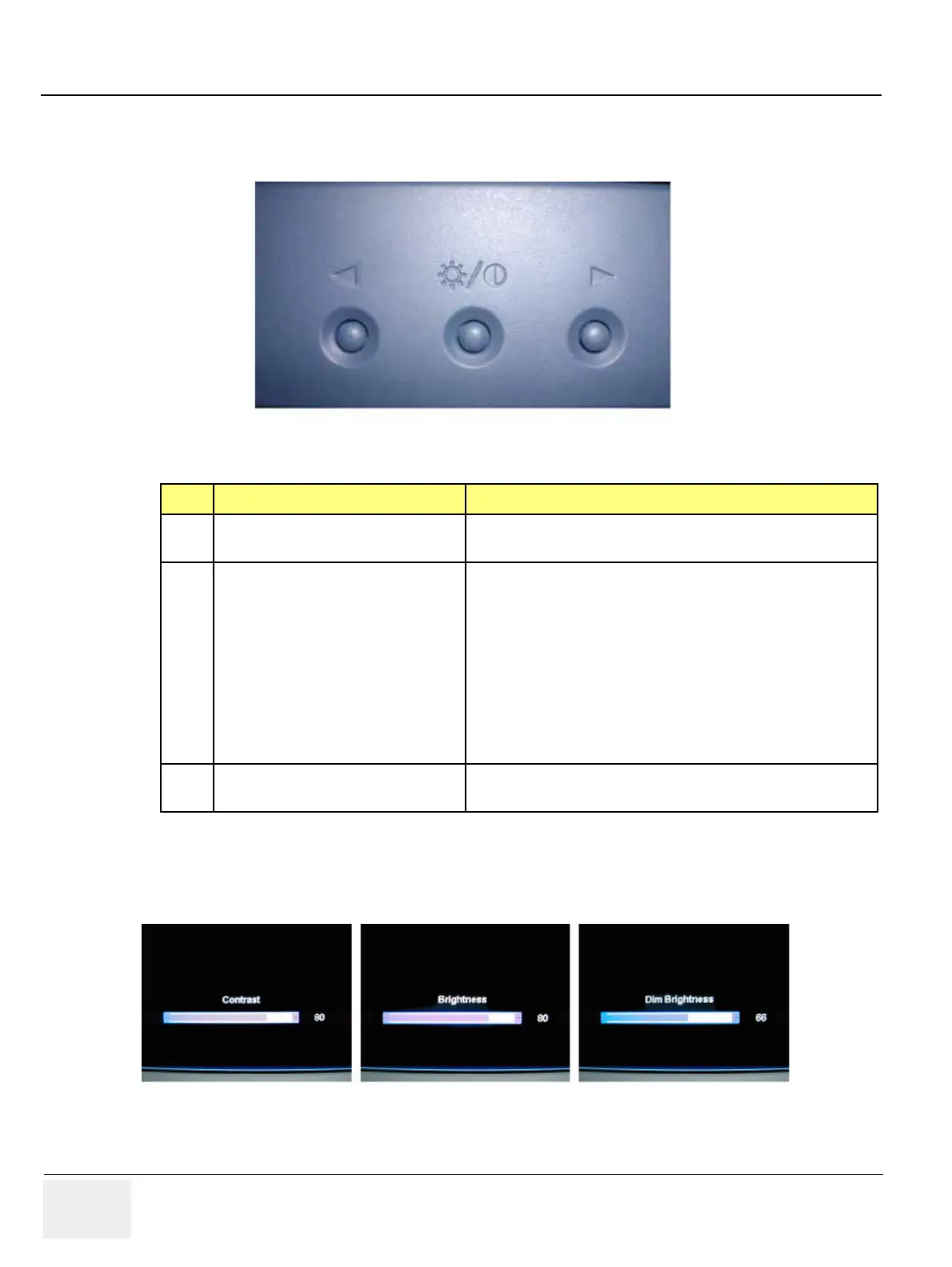

Figure 5-14 LCDMON control buttons
Table 5-3 main functions of control key buttons
No Name Main Functions
1LEFT
- Moves the highlight icon UP to select function
- Increases the adjustment of the selected function
2MENU
- When the OSD menu is off, press once
: Performs "Contrast-adjustment" function
- When the OSD menu is off, press twice
: Performs "Brightness-adjustment" function
- When the OSD menu is off, press thee times
: Performs "Dim-Brightness-adjustment" function
- When the OSD menu is off, press more than 5 seconds
: Performs "OSD-adjustment" function
- When the OSD menu is on
: Selects the function that user wants
3RIGHT
- Moves the highlight icon Down to select funtion
- Decreases the adjustment of the selected function
Figure 5-15 Contrast, Brightness and Dim-Brightness adjustment
