Section 4-9 - Board Function Checks 4 - 37
4-9-2 DTRX64II Assy Function Validation Procedure
1.) Turn on the system and check the completion of Echoloader loading.
2.) Do the Service Login. Refer to the 5-7-3-2 "Service Login" on page 5-25.
3.) Select 'Diagnostics' => 'LOGIQ P6 Diagnostics' => 'FRU Test' => 'DTRX64II overall'.
4.) Execute the diagnostic test.
5.) All diagnostic test item of DTRX64II should be passed.
6.) Shut down the system.
7.) Restart the system
8.) Check the basic function of system's different modes. Refer to the 4-3-4 "System B/M-Mode
Checks" on page 4-6 and refer to the 4-3-5 "System CFM and PWD Checks" on page 4-7.

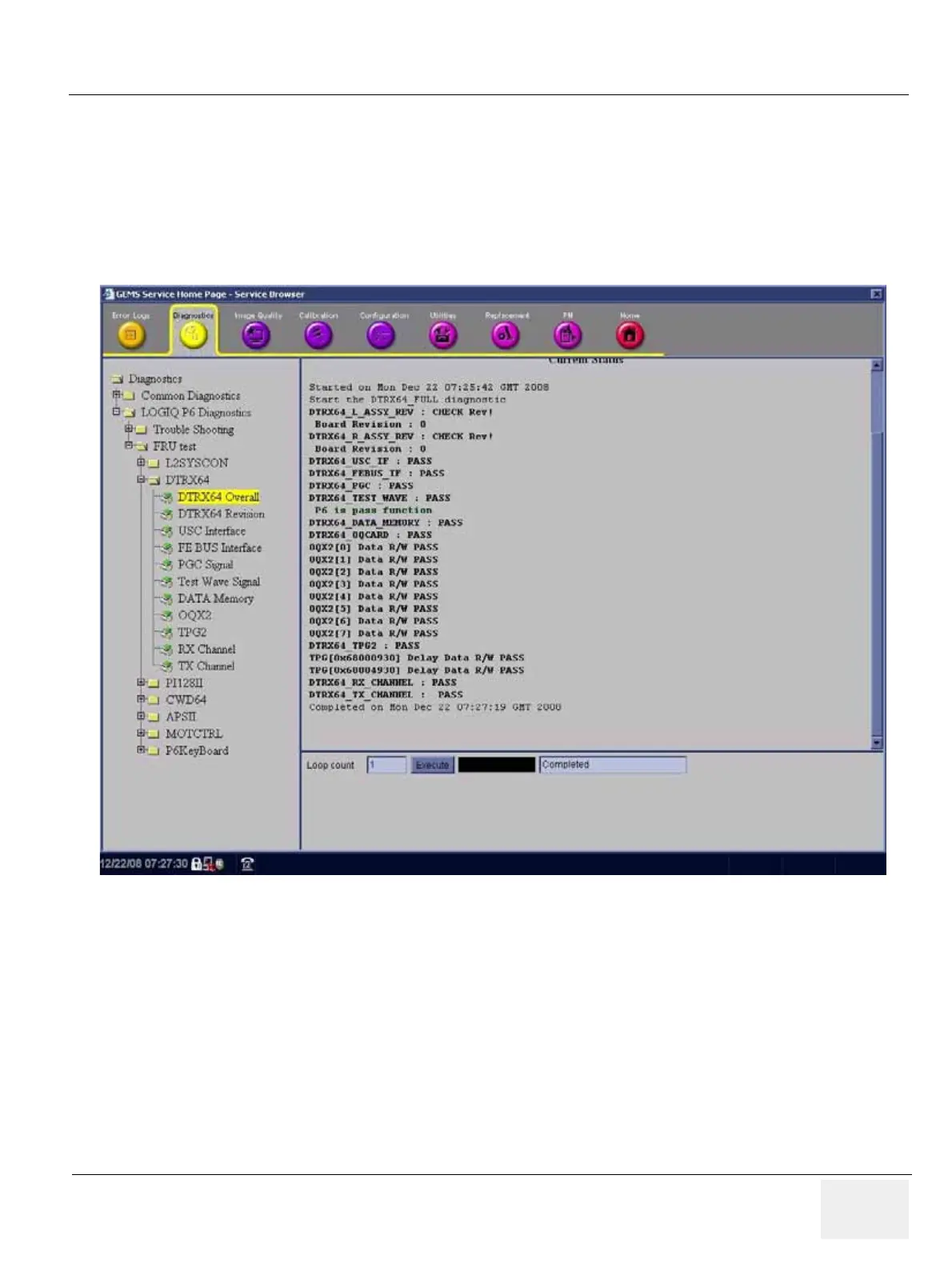

Figure 4-36 DTRX64II Diagnostic test
