DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
4 - 40 Section 4-9 - Board Function Checks
CWD64 Diagnostics Menu,” on page 22.
15.)Reboot up the system.
16.)Insert Probe in Probe port (Sector or Pencil Probe).
17.)After system boot up, enter the CWD mode.
18.)check the display Image.
Refer to the 10-5-2-1 "System Checks" on page 10-8 and 4-3-5 "System CFM and PWD Checks" on
page 4-7.

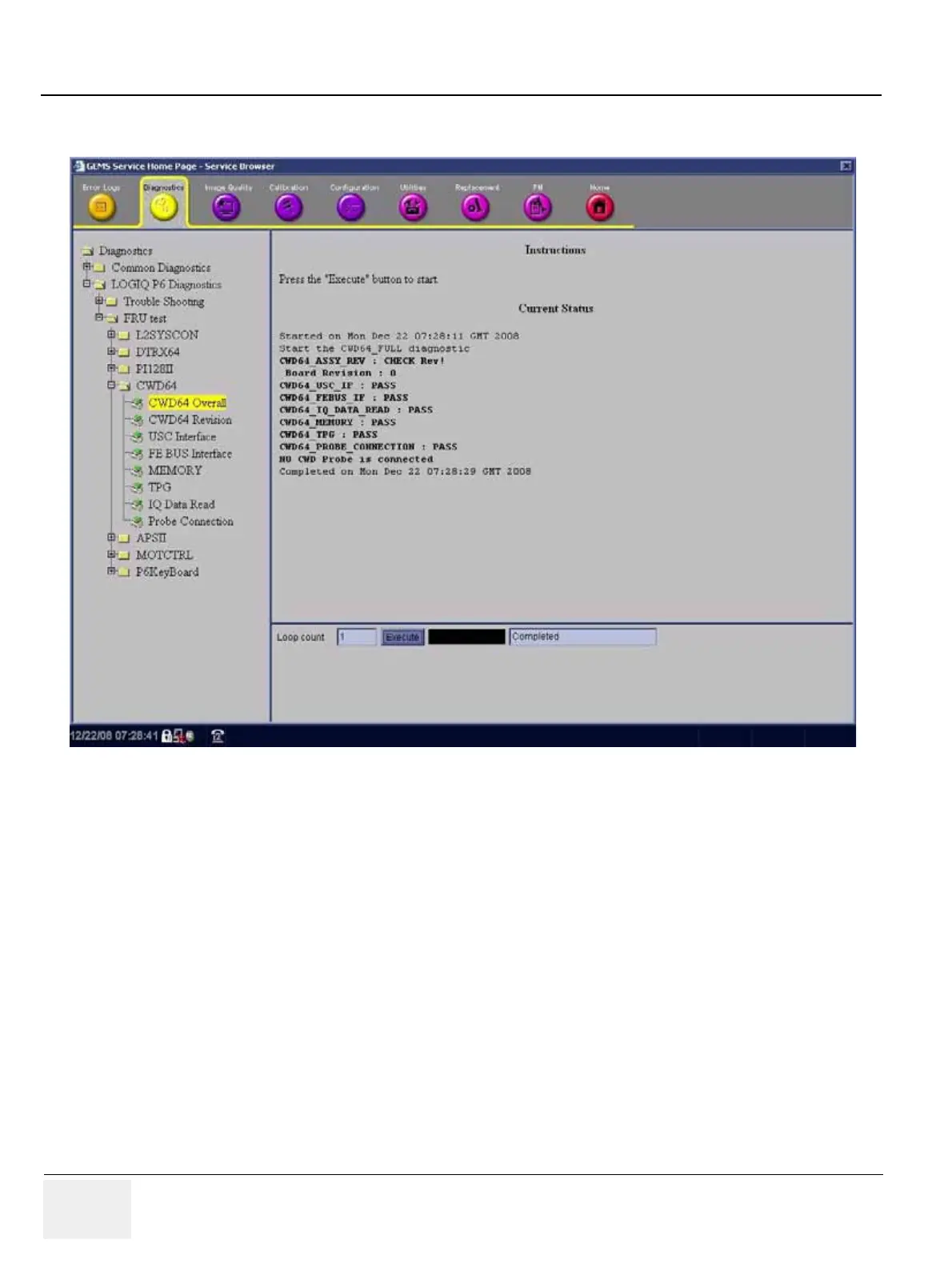

Figure 4-41 CWD64 Diagnostic Test
