GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 13
8-2-4-3 Removal procedure (cont’d)
3.) Disconnect power cable and DVI cable. Refer to the figure below.
4.) Unscrew 1 screw (2329677, TAP M4X16) to remove the Fold cover. Refer to the figure below.
5.) Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Arm cable cover. Refer to the figure
below.

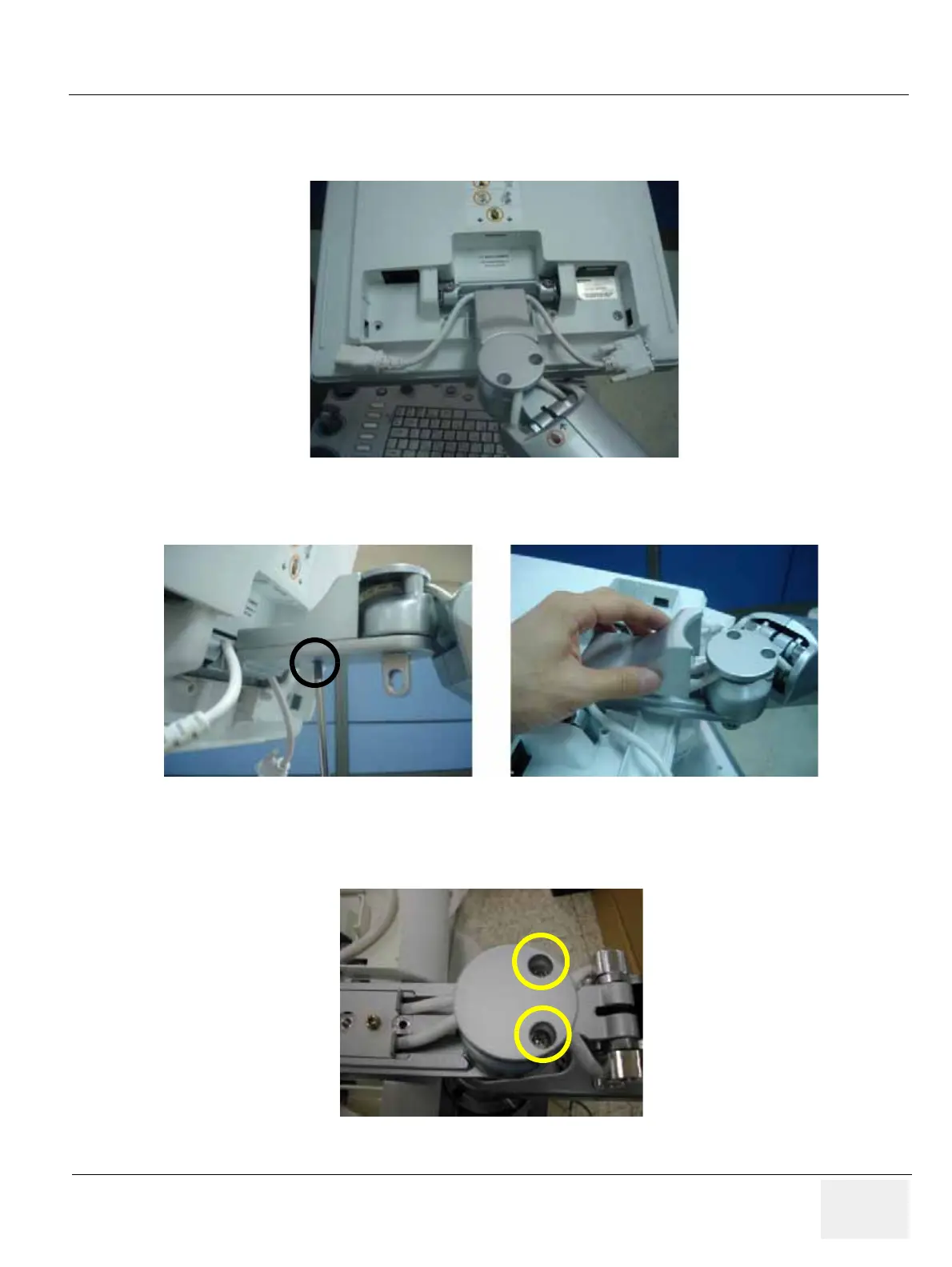

Figure 8-19 Disconnecting power cable and DVI cable
Figure 8-20 Removing the Fold cover
Figure 8-21 Removing the Arm cable cover
To Next Page
