GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 58 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-22 Neck Rear
8-2-22-1 Tools
• Common philips screwdrivers
8-2-22-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-22-3 Removal procedure
1.) Remove 2 rubber caps (1-2). Refer to the figure below.
2.) Unscrew 2 screws and remove the Neck Rear. Refer to the figure below.

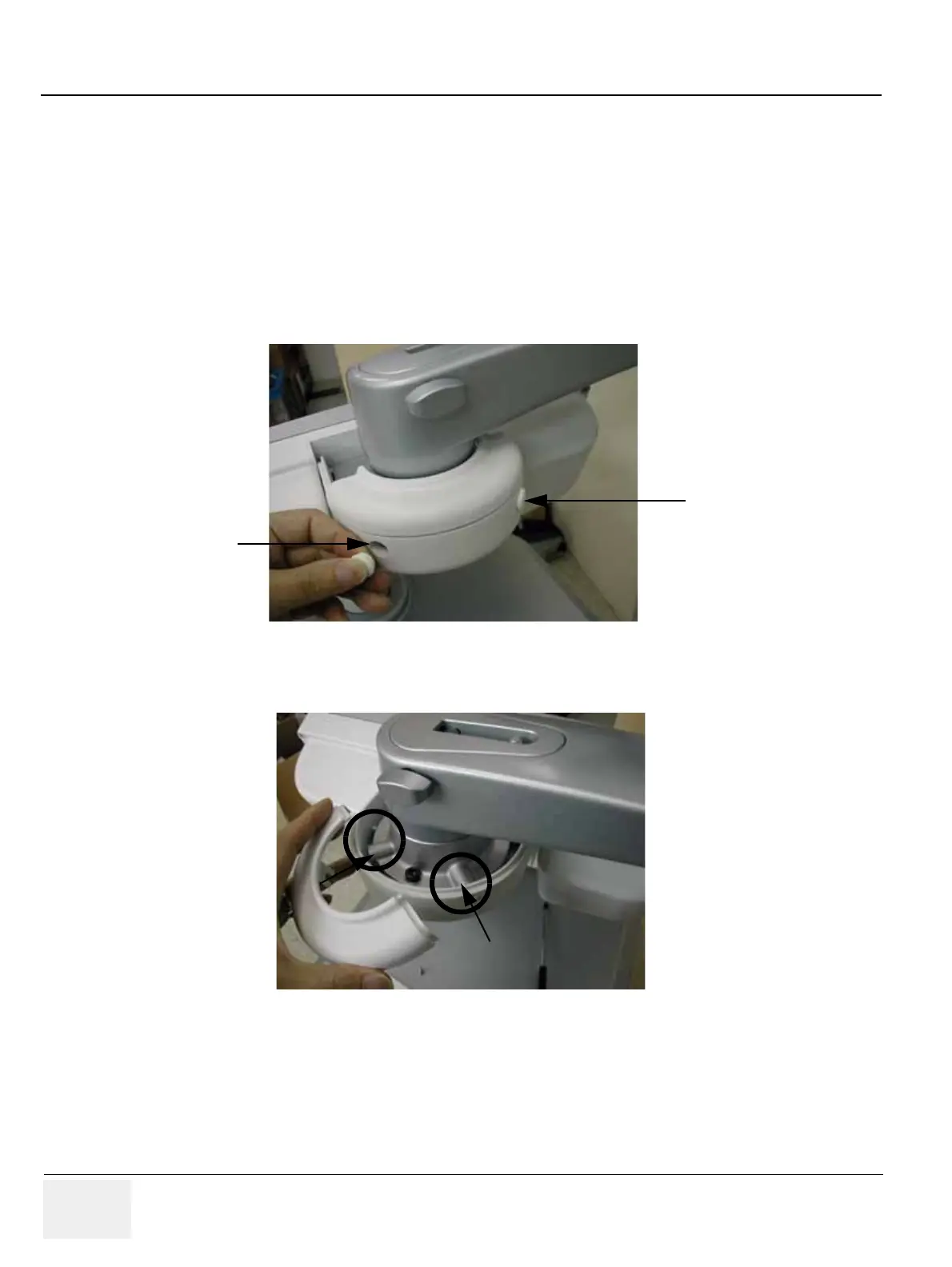

Figure 8-98 rubber cap of neck rear cover
Figure 8-99 Open neck rear cover
(2)
(1)

GE LOGIQ P6 Specifications

General

Type	Ultrasound System
Connectivity	DICOM, USB, Ethernet
Applications	Obstetrics, Gynecology, Vascular, Cardiology, Musculoskeletal
Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler
Portability	Mobile
Transducer Ports	3 active ports
