8 - 60 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-23 Dummy Cover L / R
8-2-23-1 Tools
• Common philips screwdrivers
8-2-23-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-23-3 Removal procedure

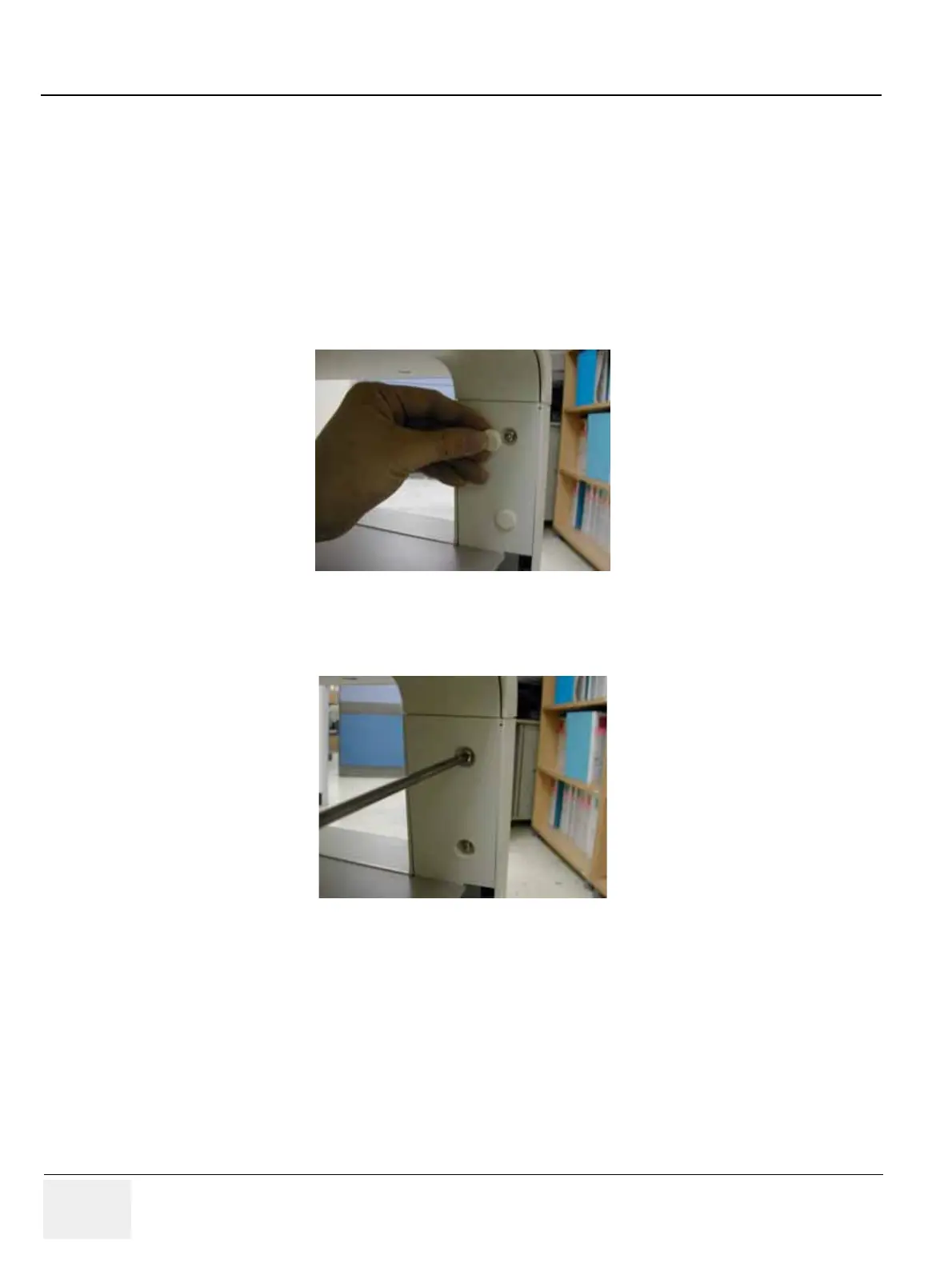

1.) Remove 2 rubber caps (1-2). Refer to the figure below.
2.) Unscrew 2 screws and remove the dummy cover L. Refer to the figure below.
3.) Same process is applied for dummy cover R.
Figure 8-100 rubber cap of dummy cover
Figure 8-101 screws of dummy cover
