GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 110 Section 8-3 - Software Loading Procedure
8-3-5-2 Image Management Guide (cont’d)
4.) The [TO] combo box is not active. It displays Local Archive. The [FROM] combo box is active.
Select the type of removable media CD/DVD Rom. Then please wait until the patient list is
visible.
5.) The Patient menu just shows the patients available for import from the removable media you
just loaded onto the system.
6.) Select the patients to be imported.
7.) Once you have selected all of the patients to import, press Transfer Button.
8.) Please wait for the patient information to be copied to this Ultrasound system. Progress bar
appears while the import is taking place.

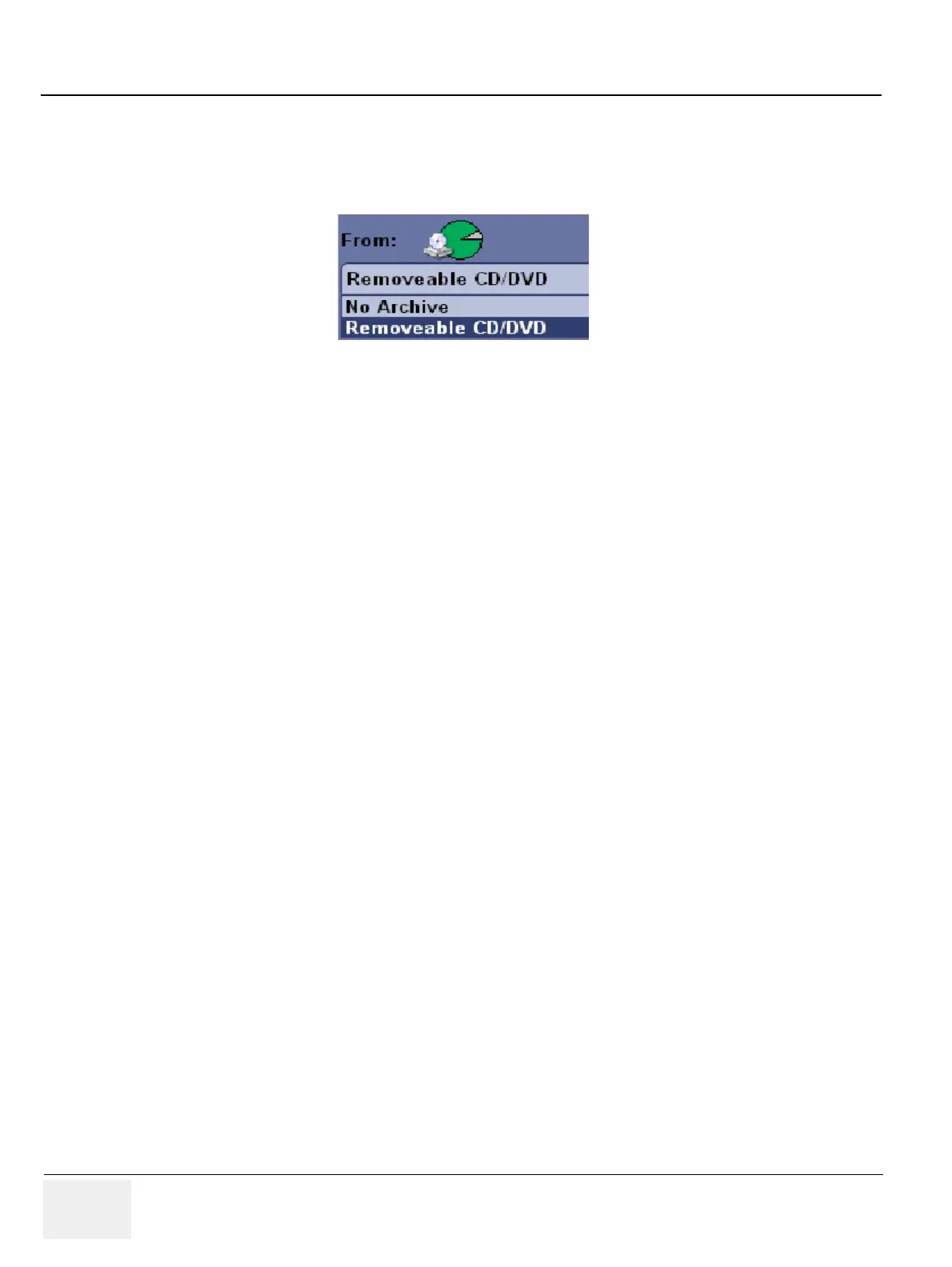

Figure 8-162 Removable Media
