Replacement Procedures
7-20 LOGIQ V2/LOGIQ V1 – Basic Service Manual
5610739-100 English Rev.10
Loading the System Software with USB memory stick (For R1.0.x)
(continued)

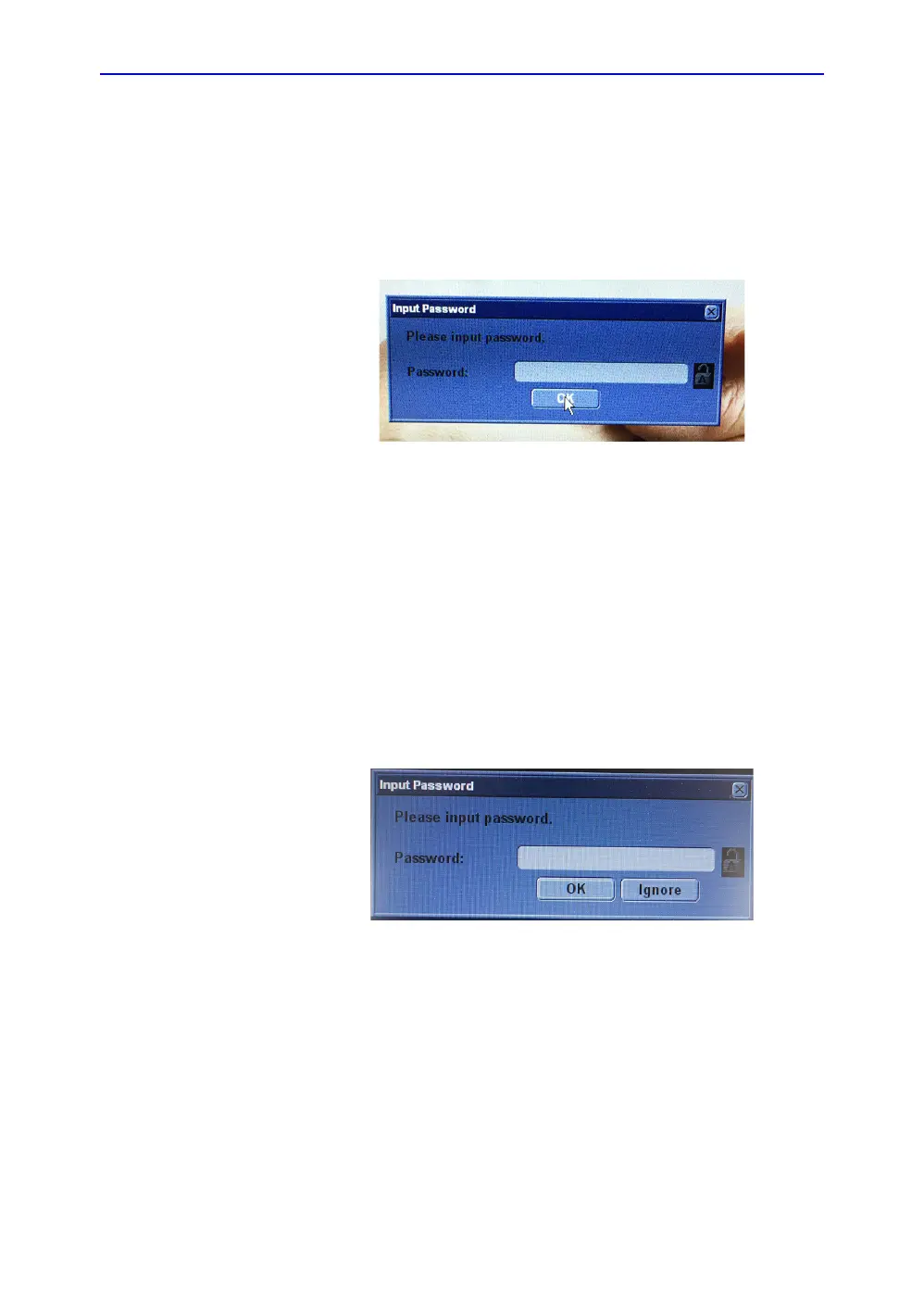

8. When the system is powered on, the following dialog
displays to indicate to input password. The password is the
same as that of service dongle.
Figure 7-5. Input password
For software R1.0.6 and above, the following dialog will
display.
There are two options for you to continue.
• If you will input a new serial number in step 9 on
page 7-21, input the password and select OK.
• If you will input the same serial number as the original in
the step 9 on
page 7-21, you can select Ignore without
input of the password. Then the step 9 on
page 7-21 in the
following procedure will be skipped.
Figure 7-6. Input Password
To Next Page
