GEK-106237P MIFII Digital Feeder Relay 9-3
9 RELAY COMMISSIONING 9.3 WIRING AND NECESSARY EQUIPMENT
9
9.3WIRING AND NECESSARY EQUIPMENT
Necessary equipment:
1 AC current source .
1 DC voltage power supply.
1 timing device.
1 Multi-meter.
Optionally, it is advisable to have a PC available, with the EnerVista MII SETUP software installed.
Relay wiring diagram.
Connect the relay as shown in
For safety reasons, the external protection earth terminal should be securely grounded.
Energize the relay through terminals.
.

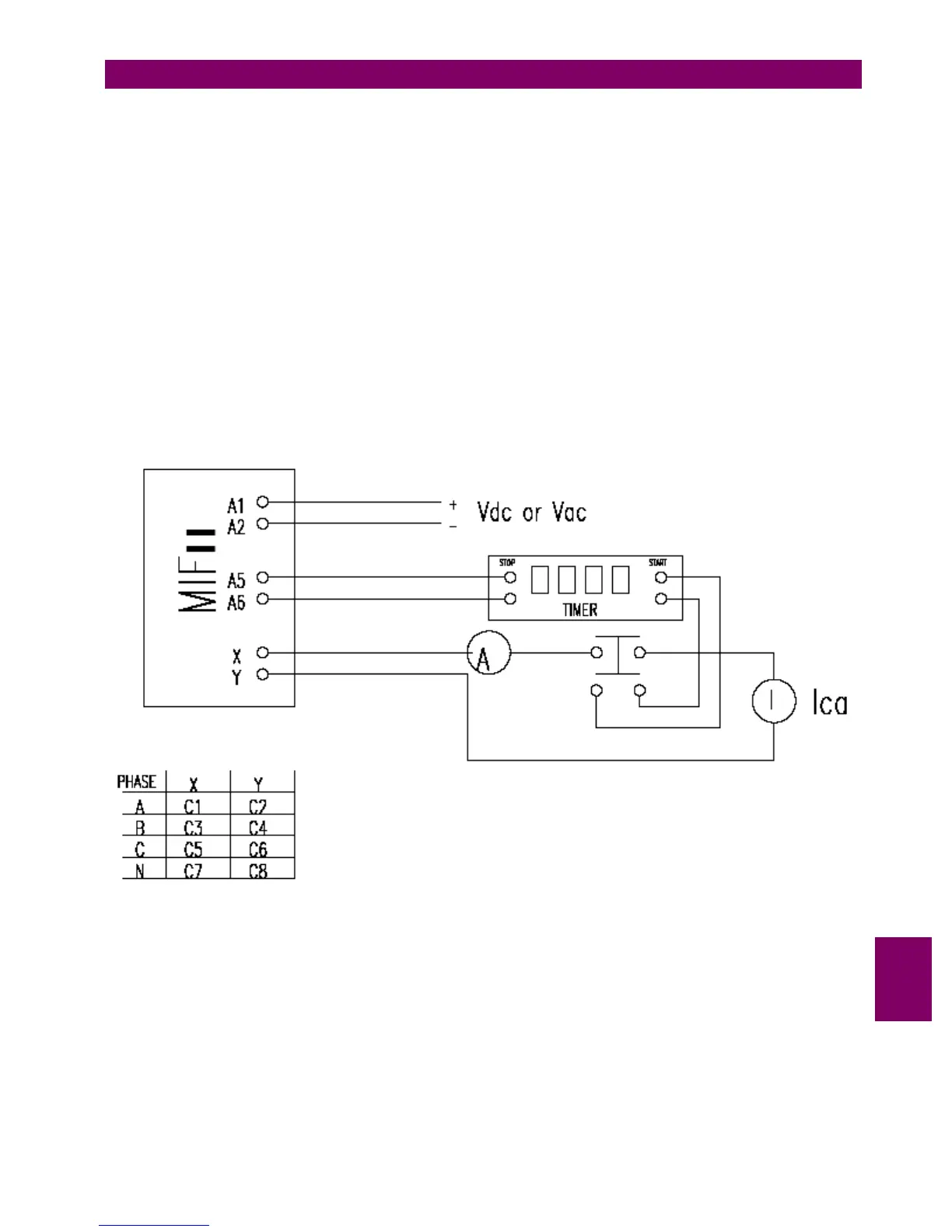

Figure 9–1: TEST CONNECTIONS FOR MIFII (RELAY
