4.2FILE 4.2.1 NEW
From the File – New option, the user can create a new file that will contain all the protection unit settings, as well as the
relay configuration (inputs, outputs, events, oscillography, etc.).
When the option is selected, the following screen will be shown. The user must select here a specific relay model matching
exactly the relay model to which the settings and configuration will later be downloaded. The mentioned settings and
configuration are related to the default factory settings of the relay
The Model Selection window will show only some basic models and those for which the MIIPC software has ever been
connected. In case the relay has been connected to different firmware version of the same model, a version selection
window will appear to choose the correct one.
.

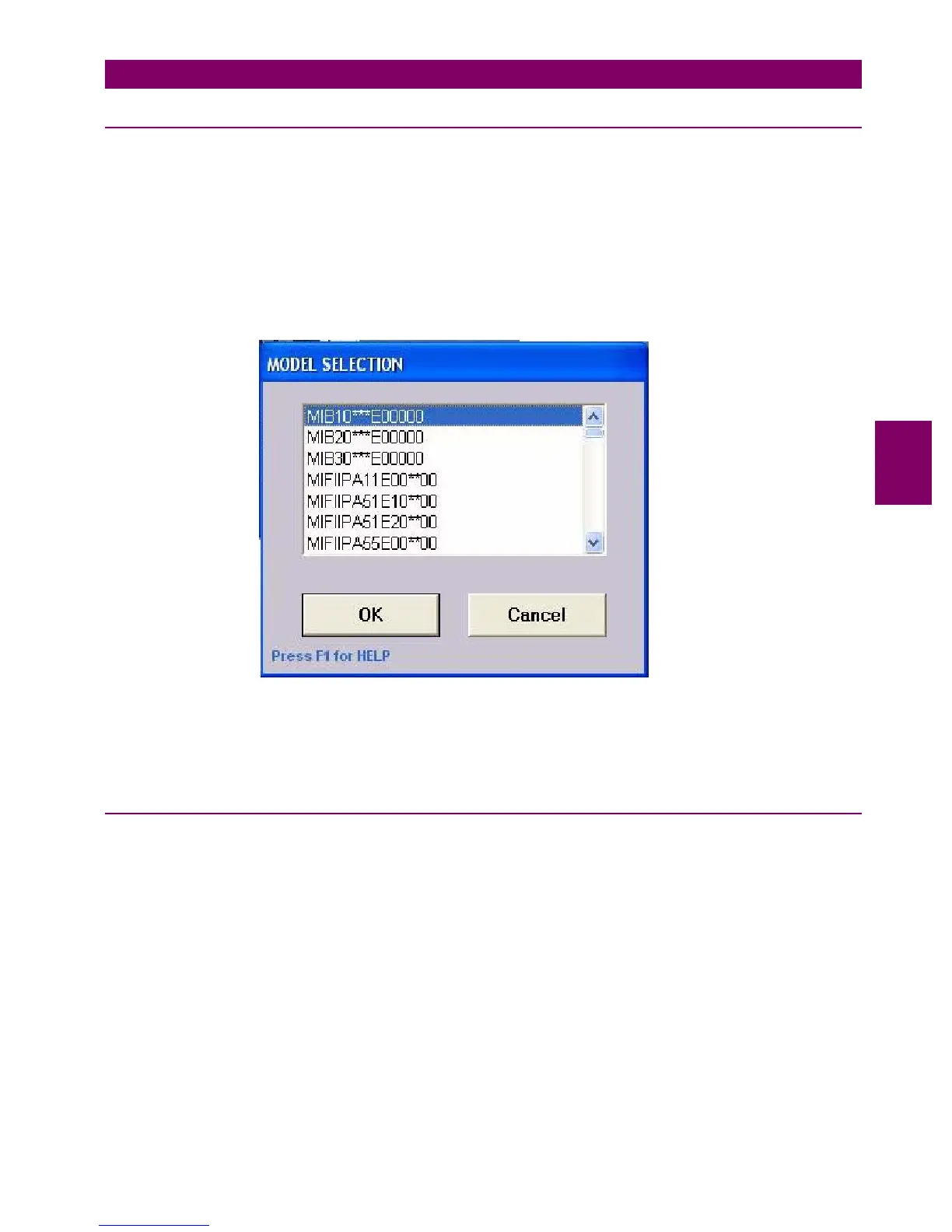

Figure 4–2: MODEL SELECTION
Once the relay model is selected, the software will load the relay structure and will enable the Setpoint, Actual,
Communication, View and Help menus for configuration.
4.2.2 OPEN
Option that allows to open previously created setting files for their modification.
Once the relay model is selected, the program will enable Setpoint, Actual, Communication, View and Help sub-menus.
