4 COMMUNICATIONS 4.4 ACTUAL

4.4.3 WAVEFORM CAPTURE

In the Actual - WAVEFORM CAPTURE option, the user can start the process to retrieve the Oscillography record stored in

the relay. The program will request the path and filename where the file is to be stored, by means of the following form:

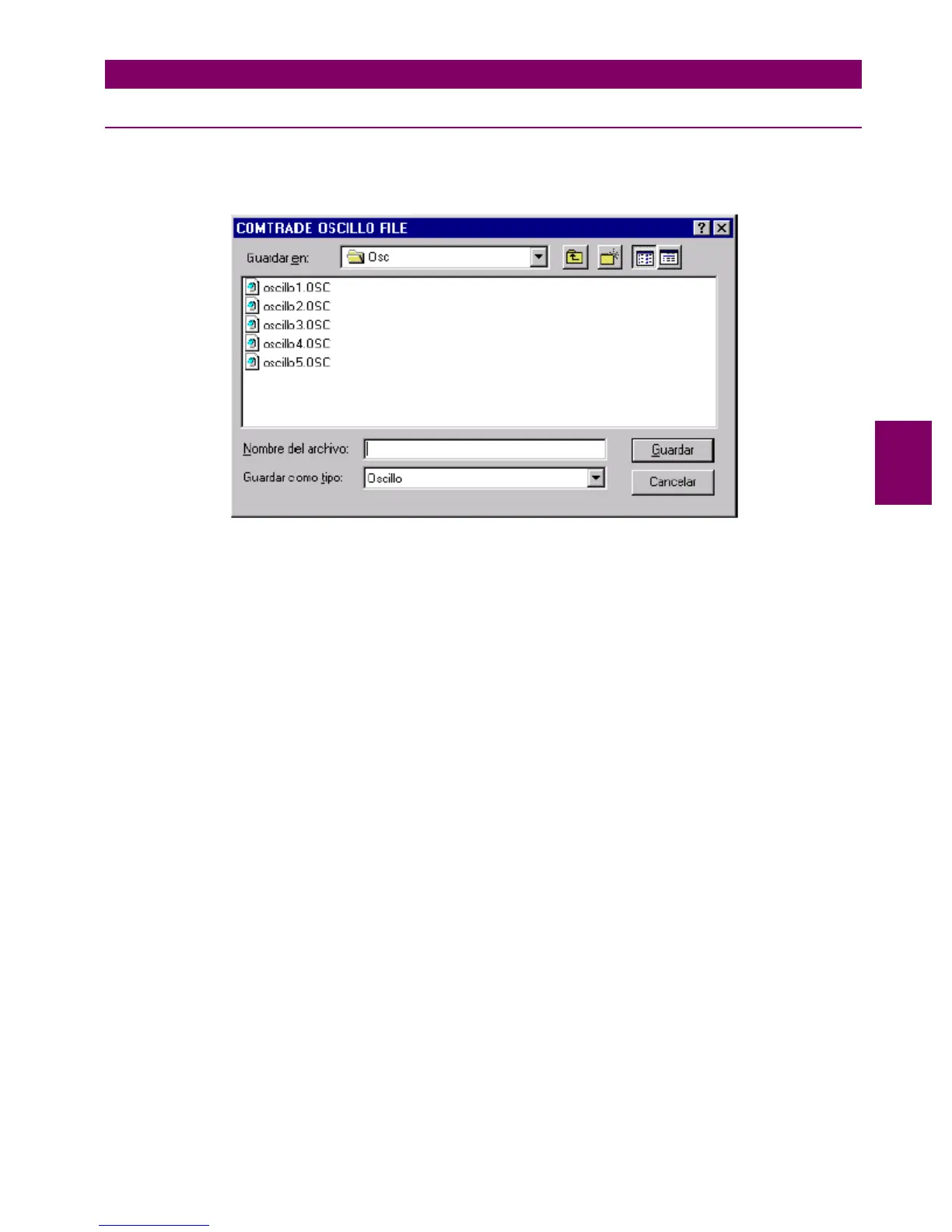

Figure 4–18: OSCILLOGRAPHY RECORD

This file can be viewed using GE_OSC software (the use of this software is described in manual GEK-105596).
