3-2 MIFII Digital Feeder Relay GEK-106237P
3.1 DESCRIPTION 3 HARDWARE
3
3.1.2 MOUNTING
The unit is designed for semi-flush mounting. The relay is secured to the panel with the 4 M6 screws provided with the unit.
This allows the user access to the front keypad, display and communication port. The wiring is at the rear of the unit. The
drilling dimensions are shown on the drilling dimension diagram.
Note: Dimensions are shown in inches (mm).

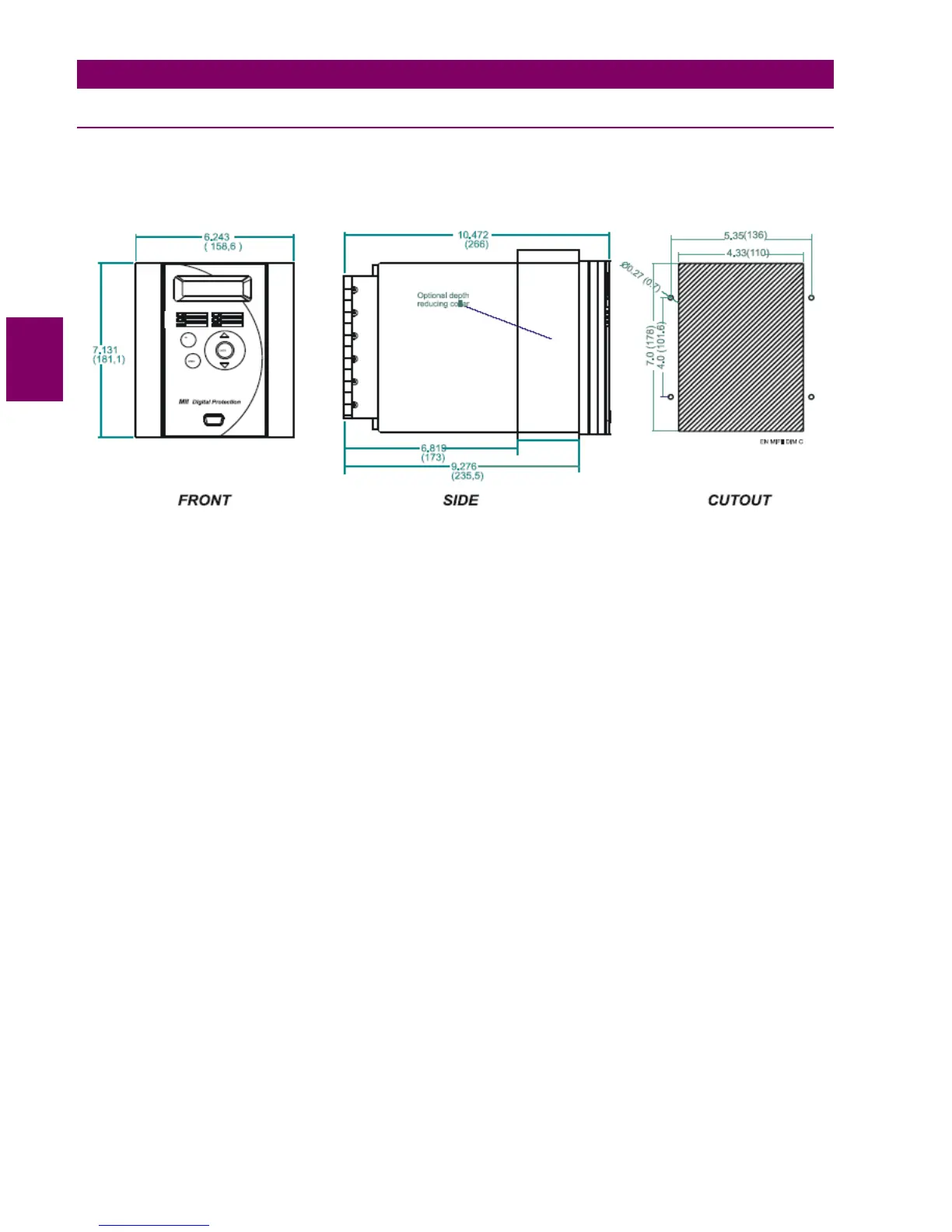

Figure 3–2: MOUNTING AND DIMENSIONS DRAWING FOR MIFII MODELS WITH DEPTH REDUCING COLLAR
