2.6 RECLOSER ELEMENT 2 PRODUCT DESCRIPTION
2

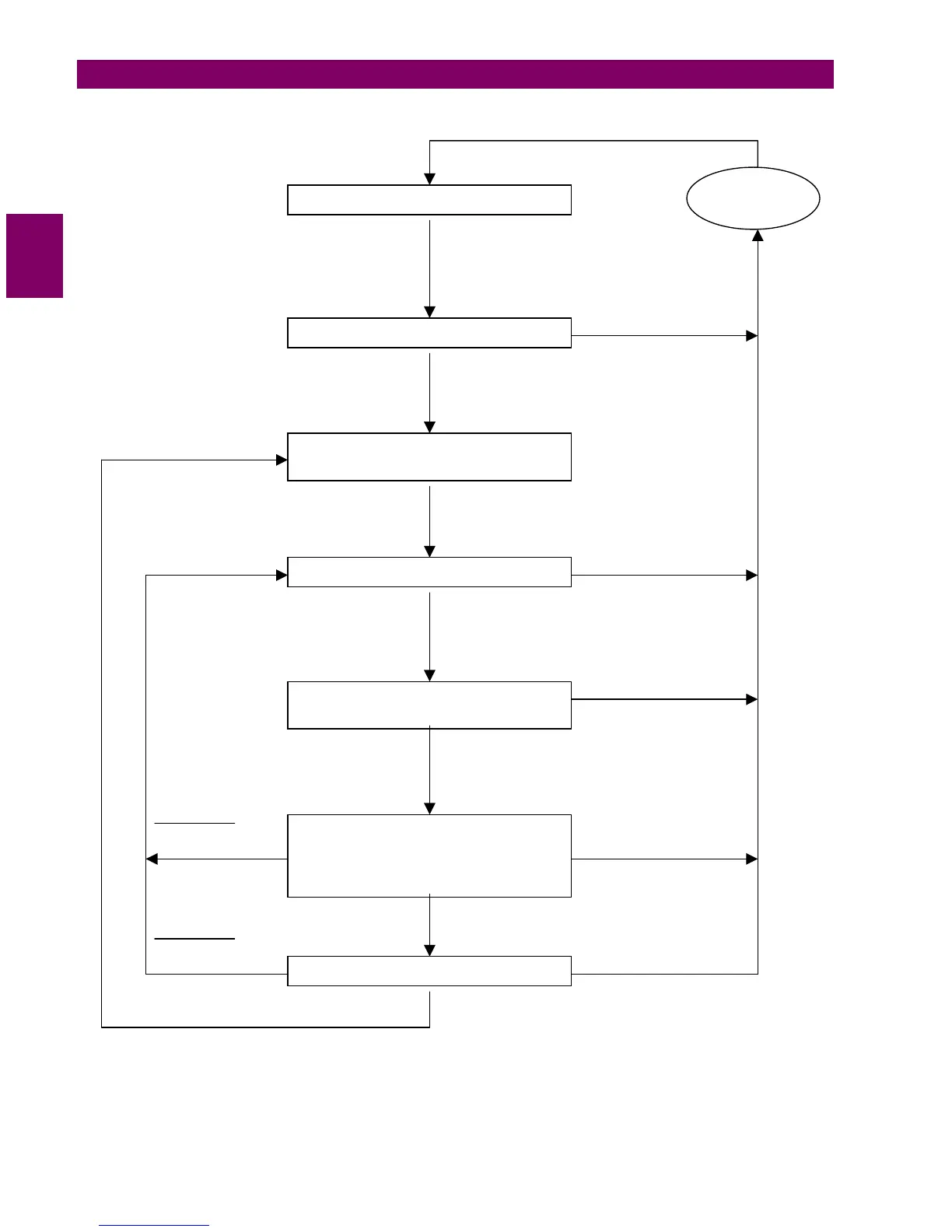

Figure 2–4: AUTORECLOSER DETAILED STATUS DIAGRAM (2)
WAIT RESET TO DELAY
CHECK BLOCK
READY FOR
FIRST RECLOSE
WAIT FOR 52 OPEN
INITIATE
DEAD TIME n
ISSUE CLOSE BREAKER
OPERATION
INCREASE n
WAIT FOR 52 CLOSE
INITIATE RST TIME
BLOCK
LAST RECLOSE +
INCOM.SEQ.TIME
BLOCK + RI + 52CLOSE
RI·LAST SHOT +
INCOM.SEQ.TIME
BLOCK + RI·LAST SHOT
LOCKOUT
DEAD TIME
n
52 CLOSE
T
RESET LOCKOUT
BLOCK
RI
OPEN
T
RESET
RI·
LAST SHOT
RI·
LAST SHOT
