SOFTWARE INTERFACE CHAPTER 3: INTERFACES

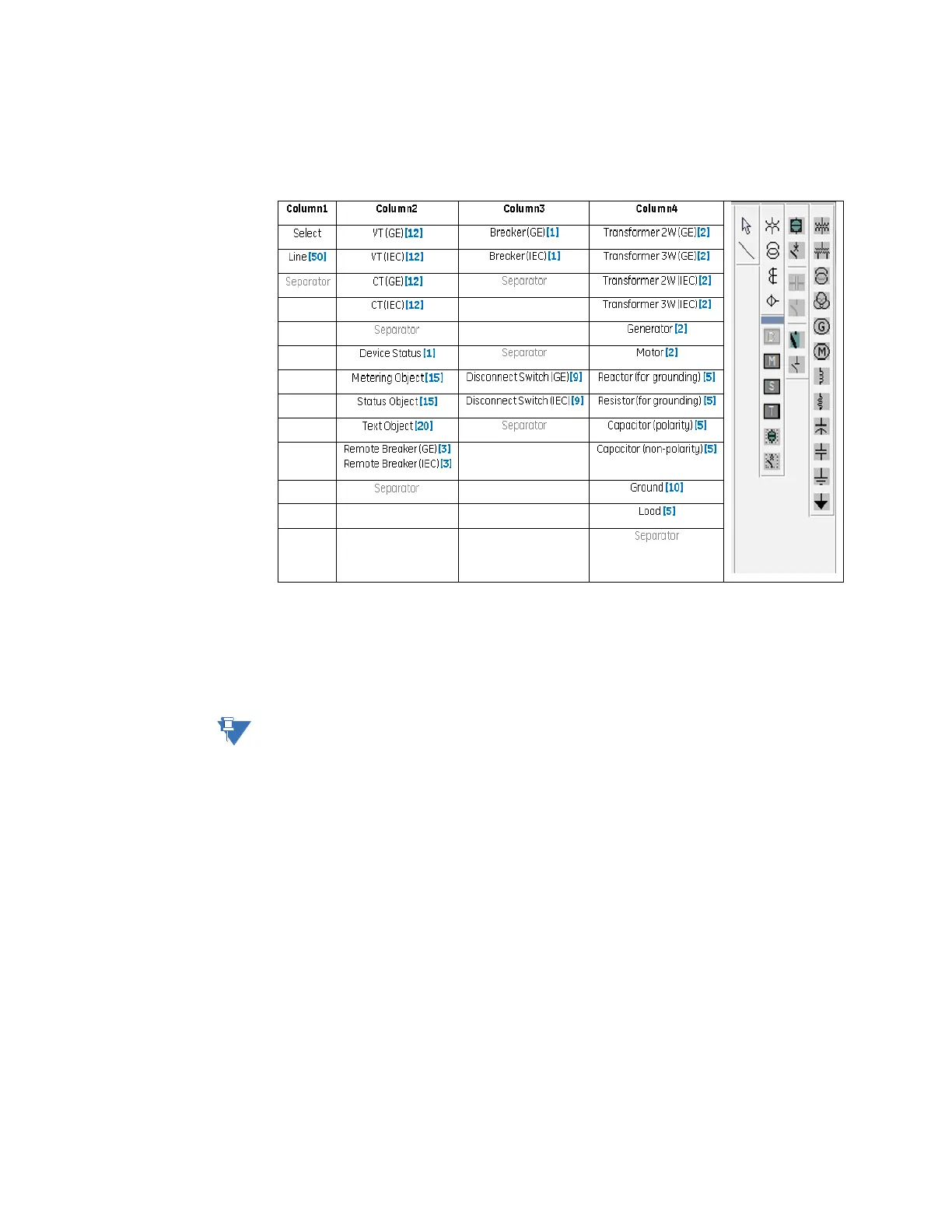

The following figure shows the objects that are available for design in the SLD Configurator
and their maximum usage limits [X]. The maximum limit reflects the maximum possible
order code.
Figure 3-18: SLD Configurator Component Library
Control Objects
The control objects consist of selectable breakers and disconnect switches. The following
figure shows the different symbols in the GE Standard style and IEC style. If the switching
element is tagged, blocked, or bypassed, indicators with the letters “T”, “B”, and “By”
appear on the lower right corner of the element. Additionally, the breaker/switch name is
displayed on top of the object.
NOTE:
The displayed breaker name is configured in the setpoint Setpoints > System > Breakers >
Breaker[X] > Name. This setpoint has a 13-character limit. The name should be kept to a
minimum so that it appears properly on the SLD.
