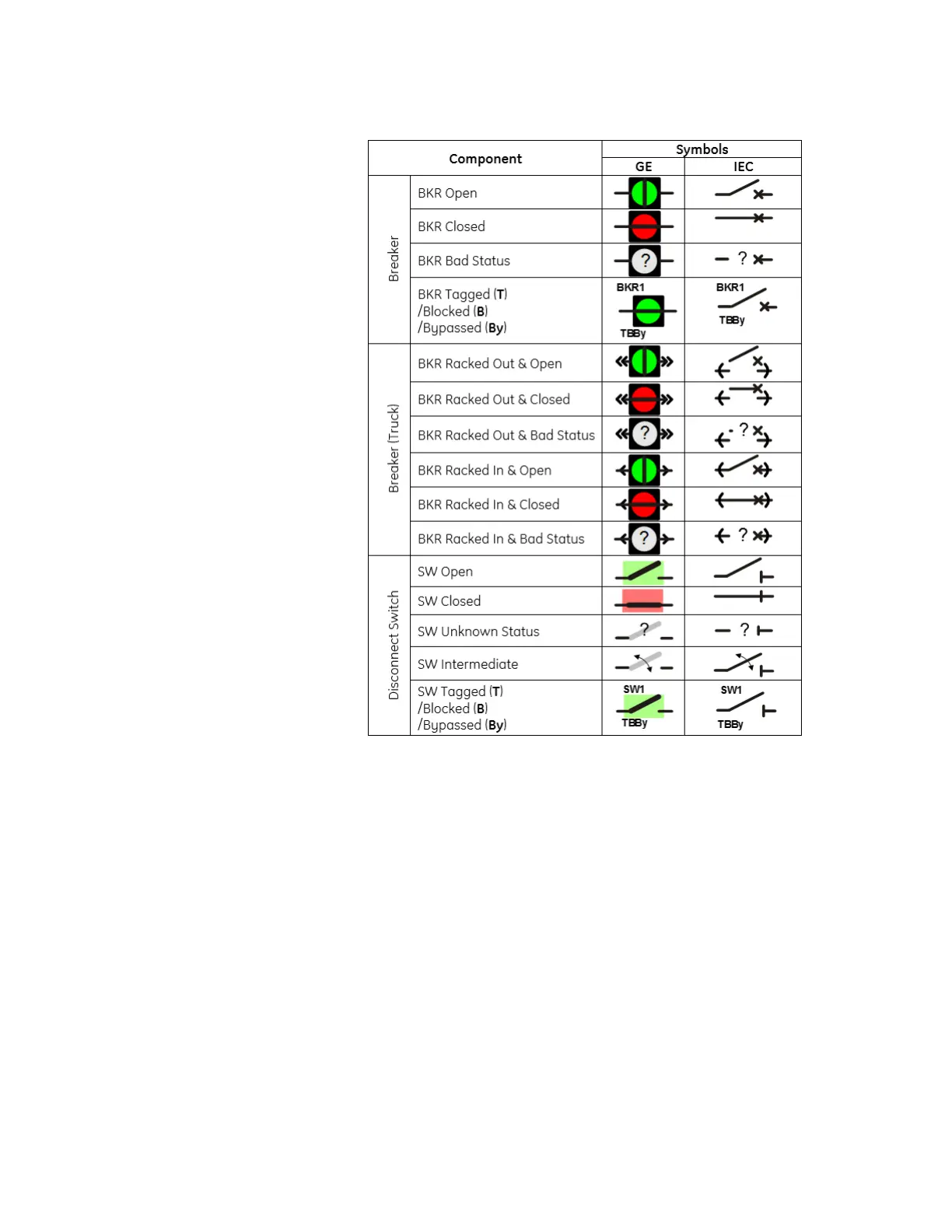

Figure 3-19: Control Object Symbols
The control objects status follows the color scheme from the Setpoints > Device > Front
Panel
> Display Properties > Color Scheme setting. By default, this setting is set to “Green
(open)”. If set to “Red (open)”, the status colors are reversed.
If the setting is used, the breaker symbols automatically change to the Truck CB symbols.
The SLD assumes that if the Breaker Racked-In/Racked-Out input is used (any setting other
than “Off”), the appropriate Truck CB symbol will be used.
The following figure shows the orientation available for the control objects. The default
position for the control objects is 0 degrees. Orientation in multiple directions allows the
user to configure the single line diagram according to the existing drawings and ensure
the correct side for the fixed/moving contacts.
