4 HUMAN INTERFACES. 4.3 WEB SERVER
4
4.3.2 SNAPSHOT EVENTS
The Snapshot events screen shows all Snapshot events produced in the relay. This screen is refreshed automatically every
minute.
The information provided in this screen includes: first, the relative event index, the lowest index corresponding to the most
recent event; next, the event text that shows the reason for the event, its status, active (ON) or inactive (OFF), and finally
the date and time when the event was produced.
The bottom of the screen shows a Metering screen; clicking on one of the events, the associated metering
values will be shown on that screen.

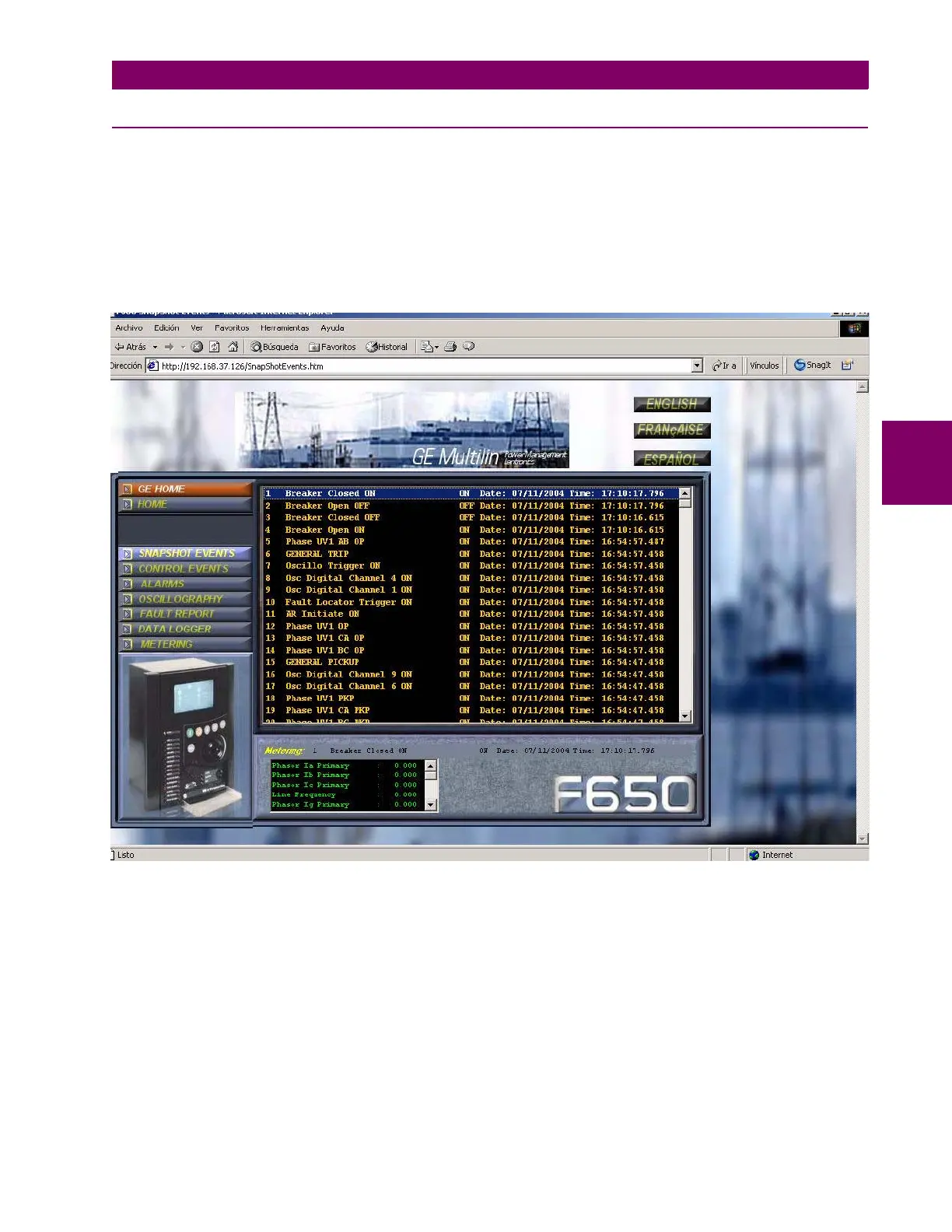

Figure 4–34: SNAPSHOT EVENTS SCREEN
To Next Page
