GEK-113032A W650 Wind Generator Protection System 5-43
5 SETTINGS 5.4 PROTECTION ELEMENTS
5

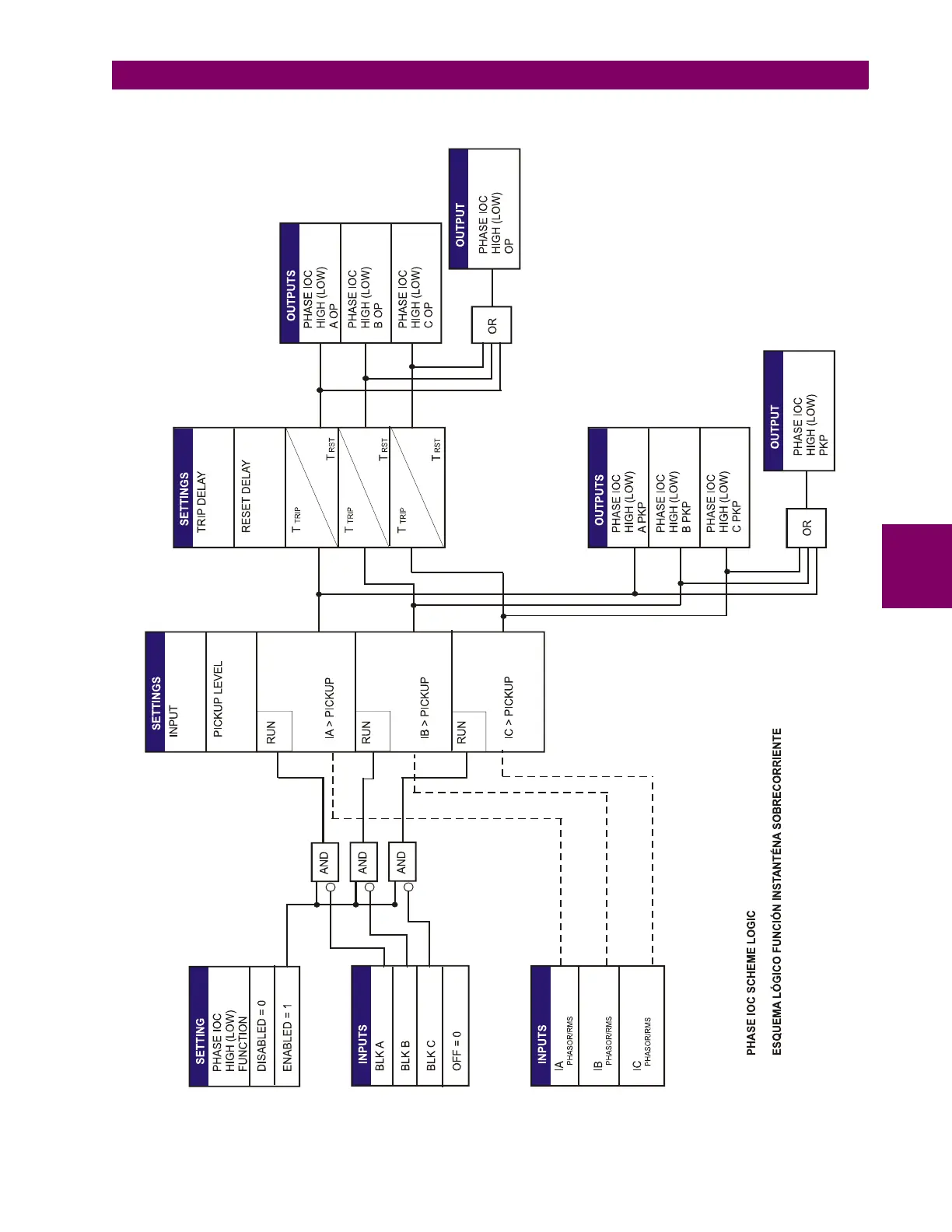

The following figure shows the logic scheme diagram for high range and low range Instantaneous overcurrent elements
(50PH, 50PL).
Figure 5–6: PHASE IOC ELEMENTS LOGIC SCHEME (A6632F1)
