GEK-113032A W650 Wind Generator Protection System 5-97
5 SETTINGS 5.6 INPUTS/OUTPUTS
5
b) WITHOUT SUPERVISION
This is a very frequent common case, and we must only wire the tripping circuit to terminals F35 and F36, leaving unused
terminals F34, F15, F16, F17, F18.

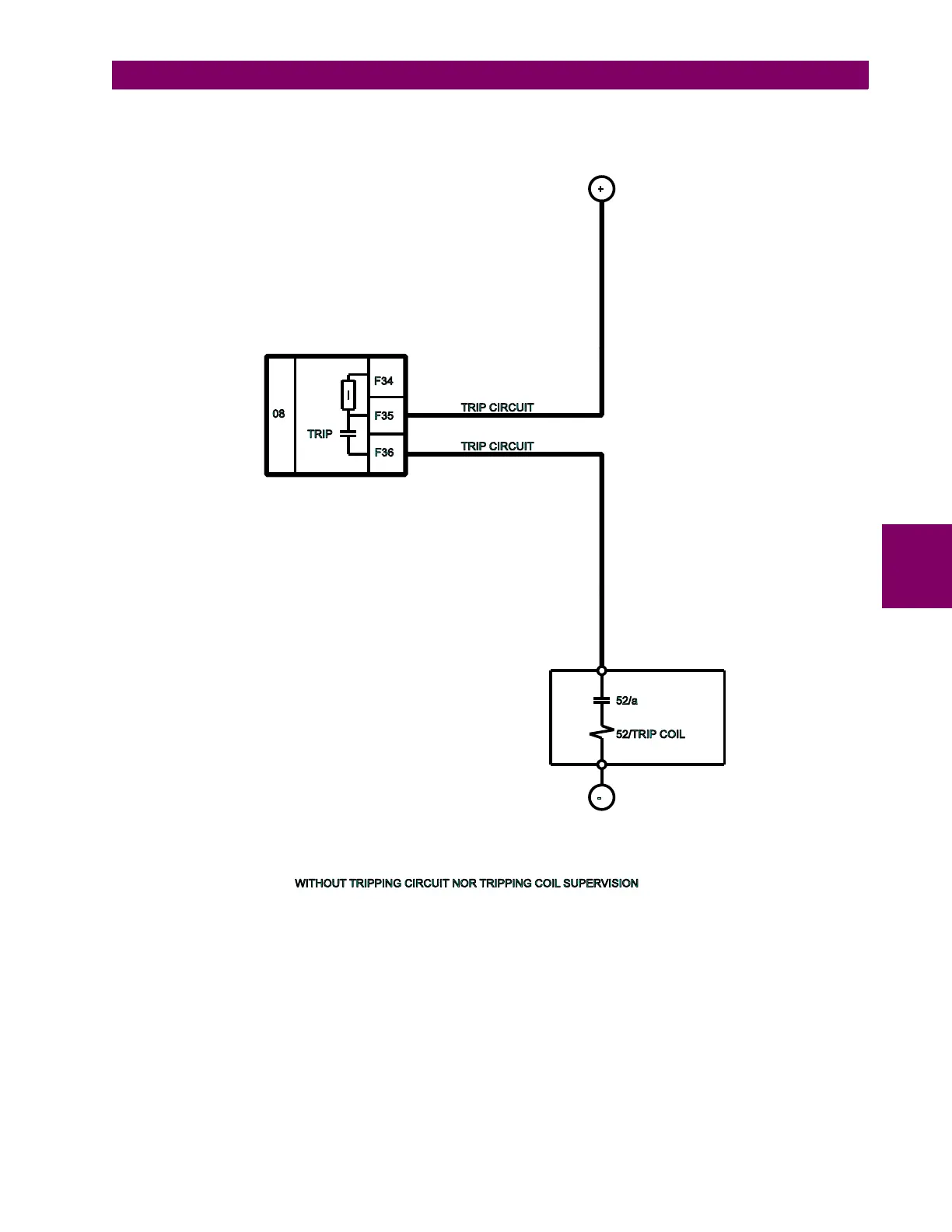

Figure 5–26: CIRCUIT WITHOUT TRIPPING CIRCUIT SUPERVISION (A6631F1)
