GEK-113032A W650 Wind Generator Protection System 5-99
5 SETTINGS 5.6 INPUTS/OUTPUTS
5
d) WITH SIMPLE VOLTAGE SUPERVISION

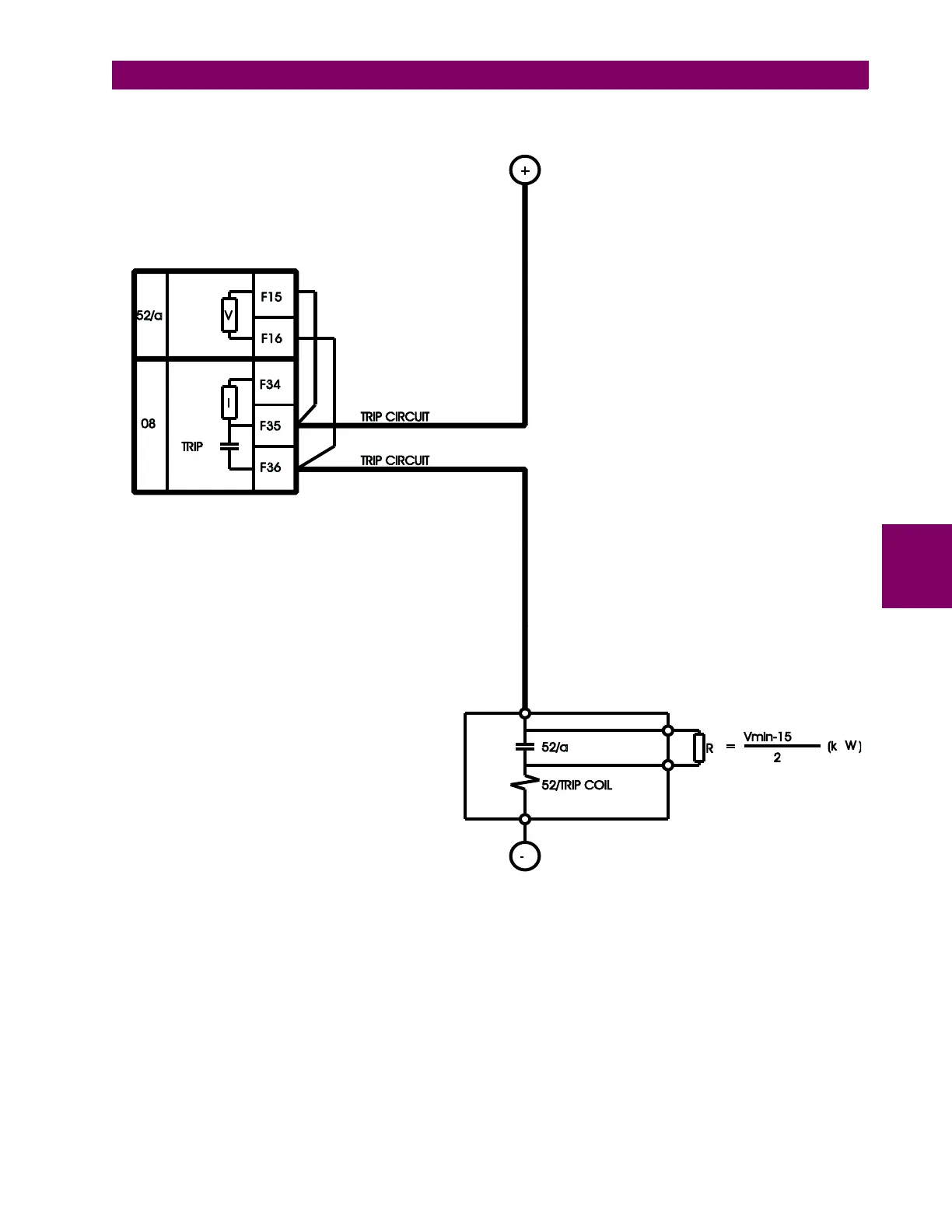

Figure 5–28: SUPERVISION APPLICATION WITH AUXILIARY CONTACT 52A AND A RESISTOR (A6631F3)
