This is done in the menu Setpoint > Relay Configuration > Output, selecting an output and choosing the internal signal
OPERATION BIT 1, which corresponds to the bit that is activated when the related operation is executed.

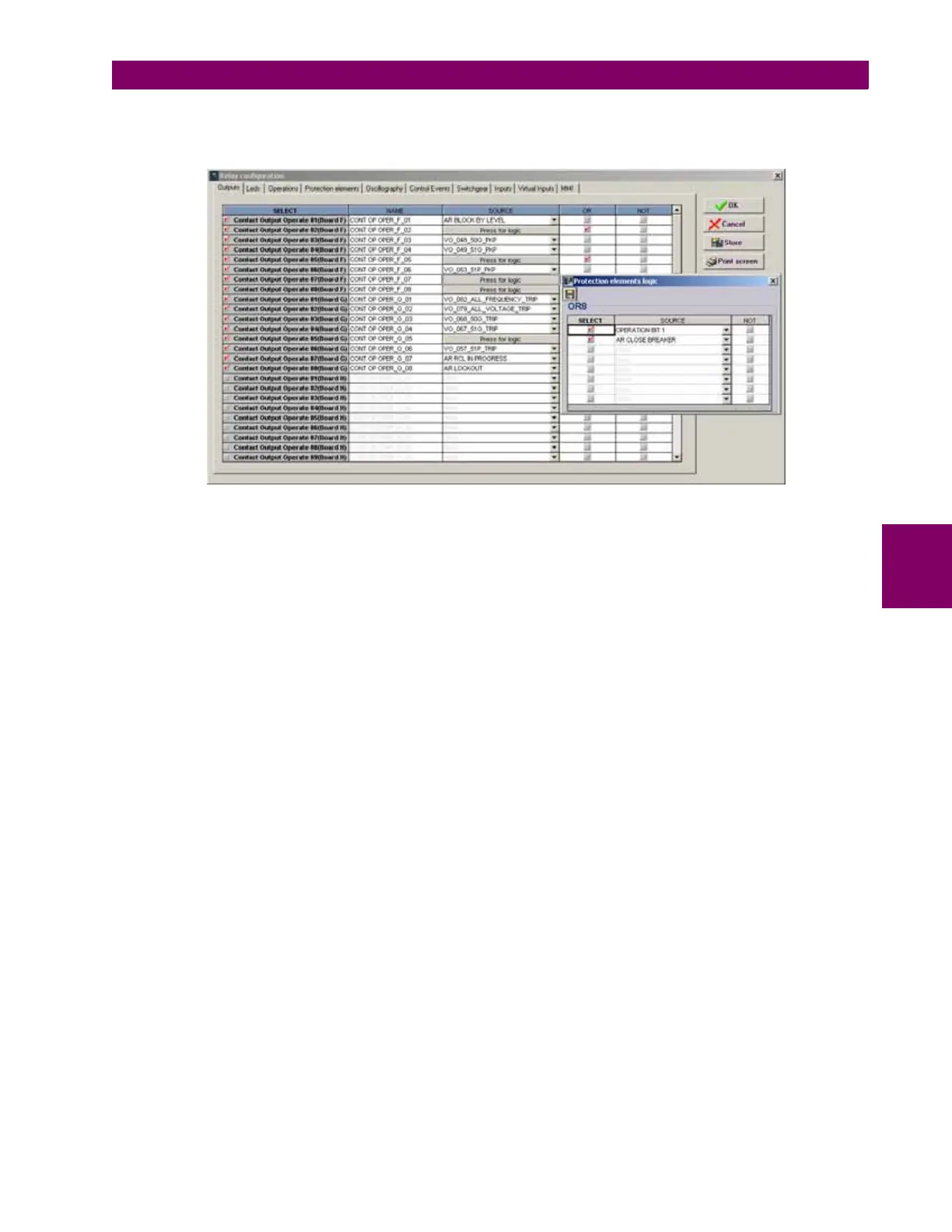

Figure 5–38: CONTACT OUTPUT CONFIGURATION
Note: Operations time out for confirmation
Configurable screen in graphical HMI: In the relay HMI the configurable objects wait one minute for confirmation after
operation selection. The object will be blinking during one minute. After that time, the object will be deselected.
Front Keys: In operations performed by front keys, the time out for confirmation is 10 seconds.
