10-6 W650 Wind Generator Protection System GEK-113032A
10.2 BOOT CODE UPGRADE 10 BOOTCODE AND FIRMWARE UPGRADE
10
After accepting to proceed, a window will open up for selecting a temporary IP Address. It is advisable to set the IP Address
that is going to be used lately in the relay for Ethernet connection.

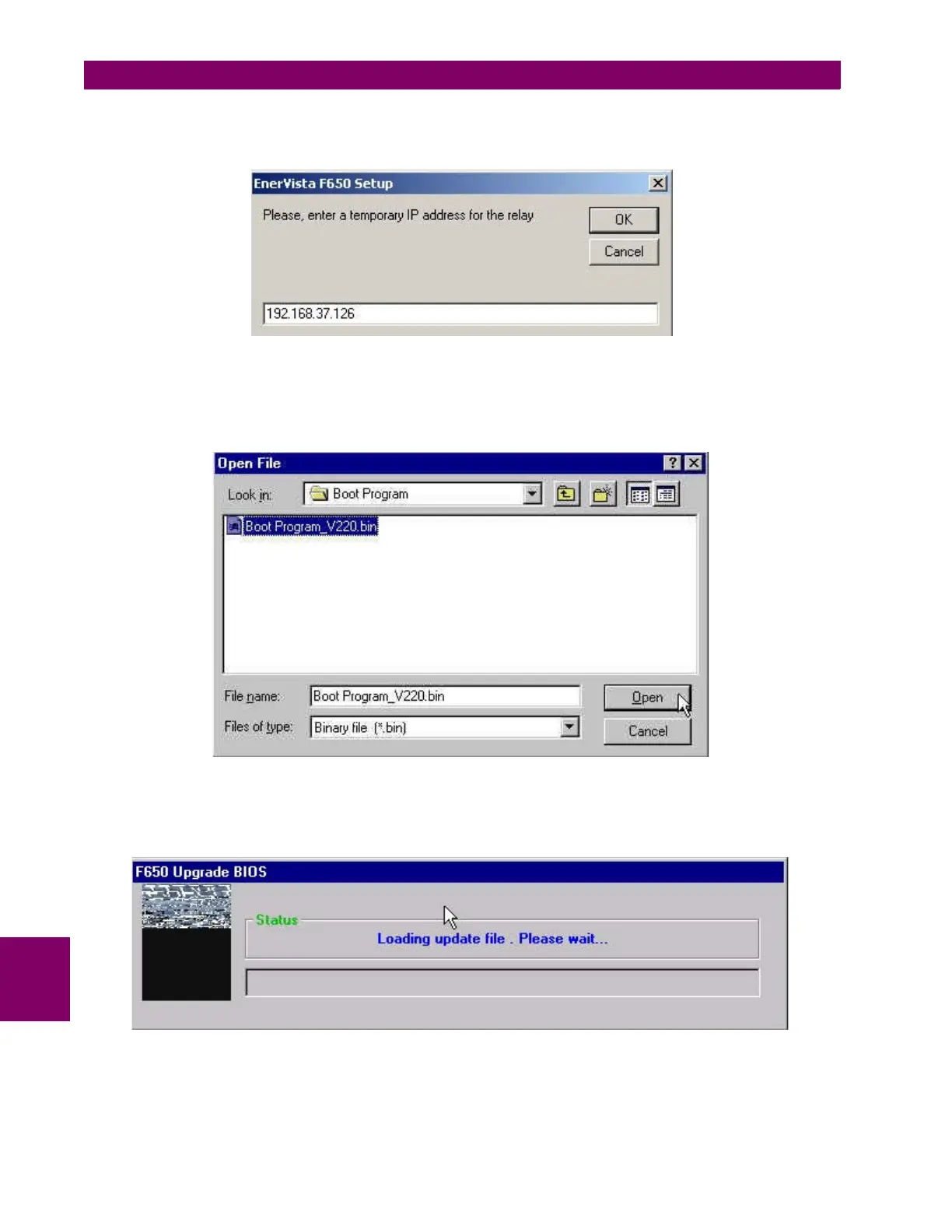

Figure 10–7: TEMPORARY IP ADDRESS SELECTION FOR BOOT UPGRADE
After entering the temporary IP address, a window will open up for selecting the appropriate file from the Multilin web site
or Product CD.
Figure 10–8: BOOT FILE SELECTION
Once the appropriate boot program file has been selected, the program will proceed to load the selected file.
Figure 10–9: LOADING BOOT FILE
