3-10 W650 Wind Generator Protection System GEK-113032A
3.4 WIRING 3 HARDWARE
3
The default port selected by switch is 10/100 TX in factory configuration. The switch selects between cable (10/100 TX)
and the first fiber port (100 FX). In Ethernet board type D (double fiber port) the backup channel is always fiber.

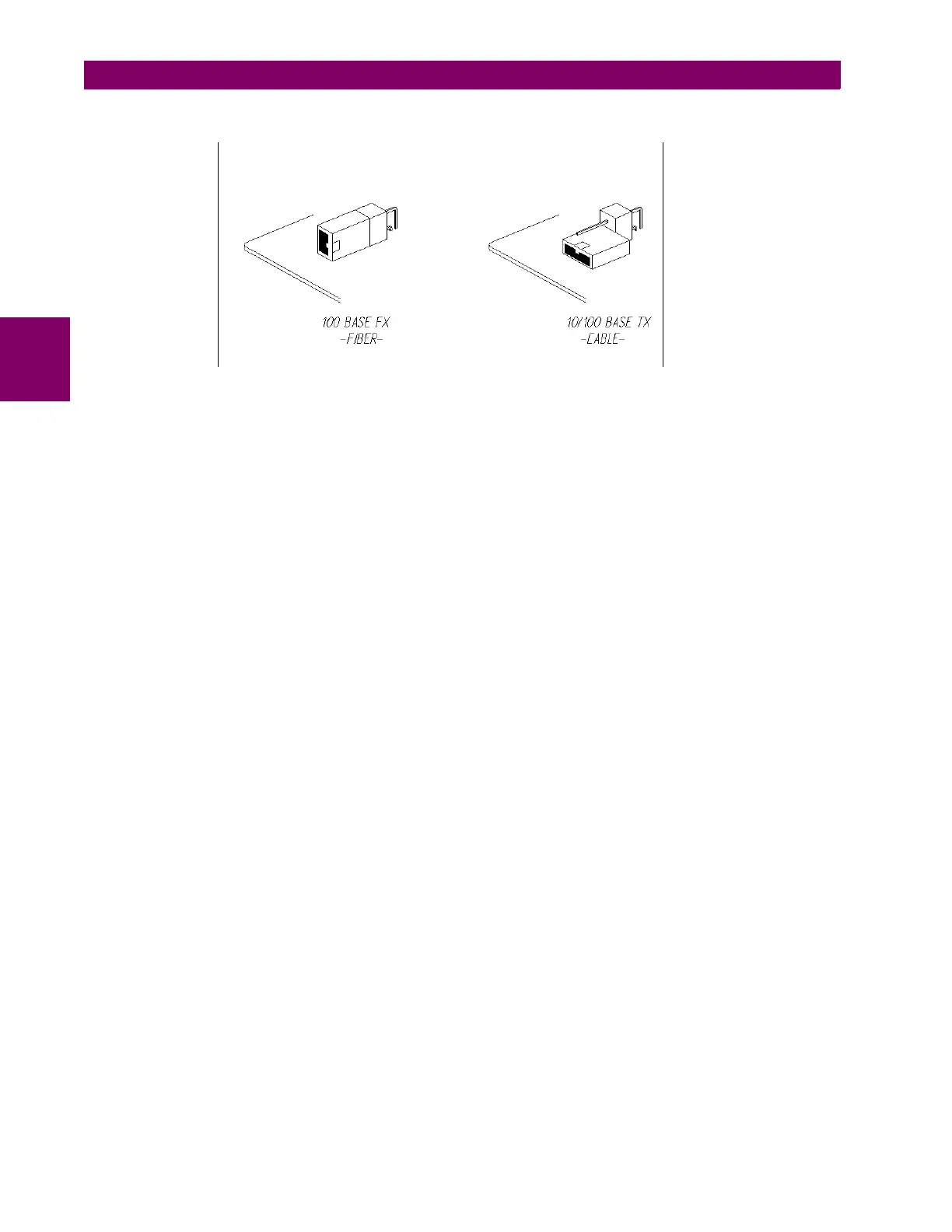

Figure 3–10: FIBER/CABLE SELECTION
