Application Example 2 - Signal Distribution
In Application Example 2, shown in Figure 47 are employed IRIG-B outputs to synchronize some IEDs, a
disturbance recorder and a signals distributor (RT411 - Timing Distributor) that from an output of the RT430,
synchronizes other four equipment.

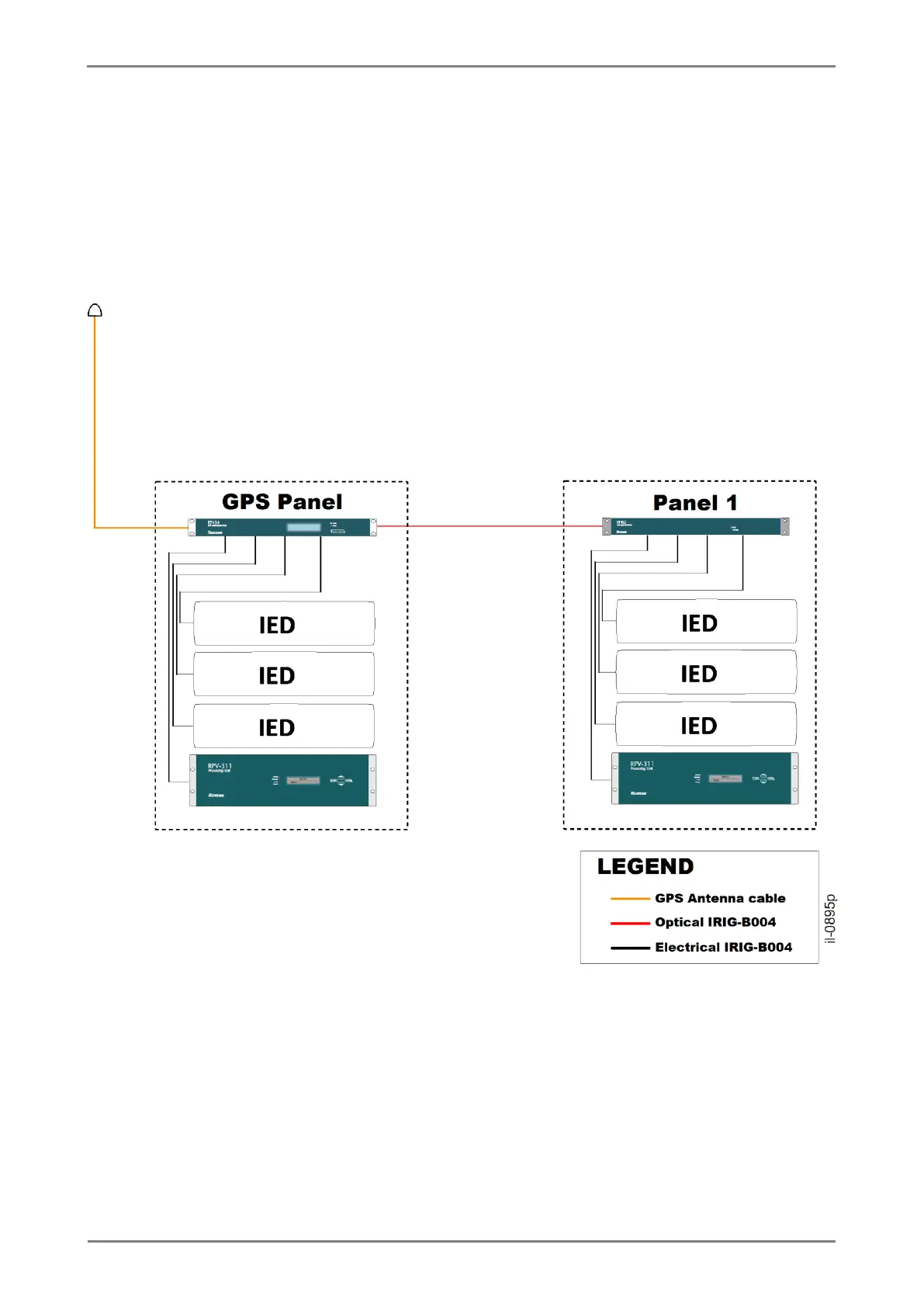

Figure 47: Application Example 2 - Signal Distribution
