APPENDIX F –APPLICATION EXAMPLES
Application Example 1 - Synchronism Outputs
In Application Example 1, shown in Figure 46, IRIG-B outputs, synchronization via Ethernet with NTP
protocol and serial datagrams to synchronize relays and a disturbance recorder are used. Also a transceiver
optical-electrical (RT412 - Optical Transceiver) to transform an electrical output in optics to synchronize a
relay and a distributor of signals (RT411 - Timing Distributor) that, from an output of the RT430, synchronizes
three relays.

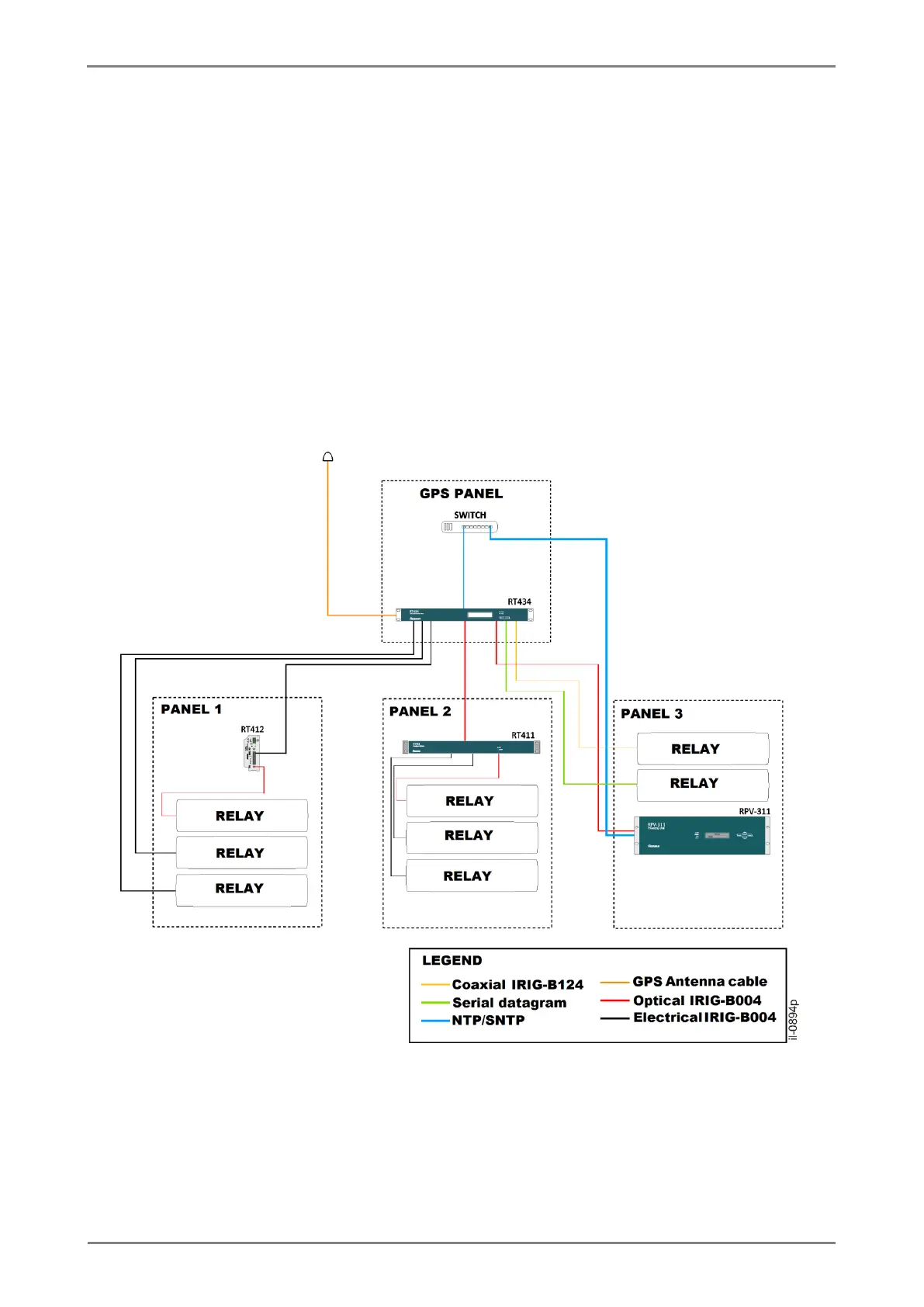

Figure 46: Application Example 1 - Synchronism Outputs
