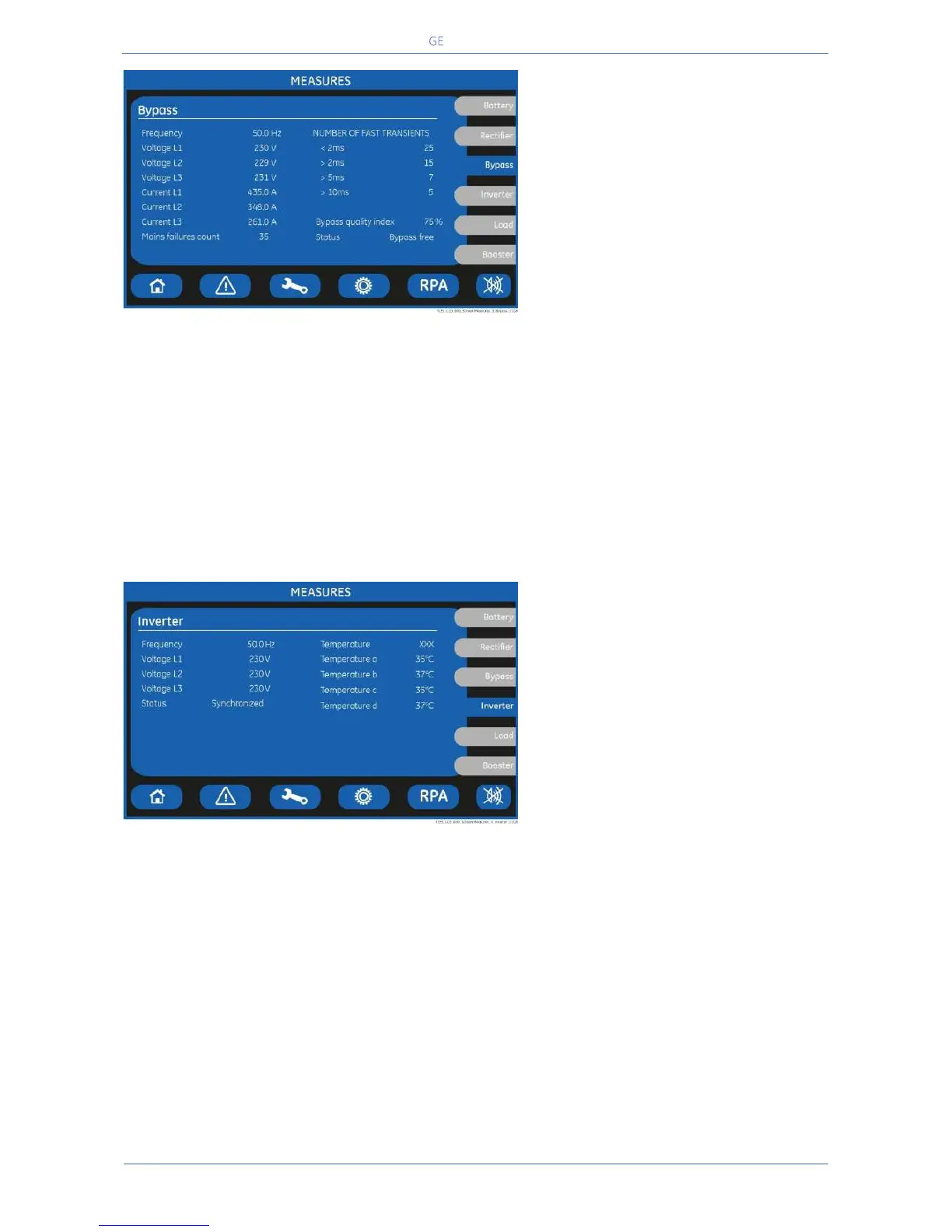

BYPASS SCREEN
Frequency
The frequency of the Mains Input.
Voltage L1 / Voltage L2 / Voltage L3
3-phase Mains voltage PHASE
/NEUTRAL.
Current L1 / Current L2 / Current L3
Mains Input current for the 3-phases.
Main failure count
The total number of minor Mains faults (Bypass Mains out of tolerance faults).
NUMBER OF FAST TRANSIENTS
The number of fast transients occurred on the bypass utility on the last seven days.
Bypass quality index
The statistic evaluation in % (100= good; 0= bad) of the Bypass mains.
Status
Bypass status: Bypass free / Bypass blocked.
INVERTER SCREEN
Frequency
The output frequency of the Inverter.
Voltage L1 / Voltage L2 / Voltage L3
3-phase output voltage
PHASE/NEUTRAL.
Status
The synchronization status of the
Inverter with respect to Mains:
- Synchronized.
- Not synchronized.
Temperature
“XXX” indicates disabled function.
Temperature a
The temperature of the Inverter bridge (lower left module).
Temperature b
The temperature of the Inverter bridge (upper left module).
Temperature c
The temperature of the Inverter bridge (lower right module).
Temperature d
The temperature of the Inverter bridge (upper right module – only for 800 kVA).
