Geeetech A30 User Manual

20

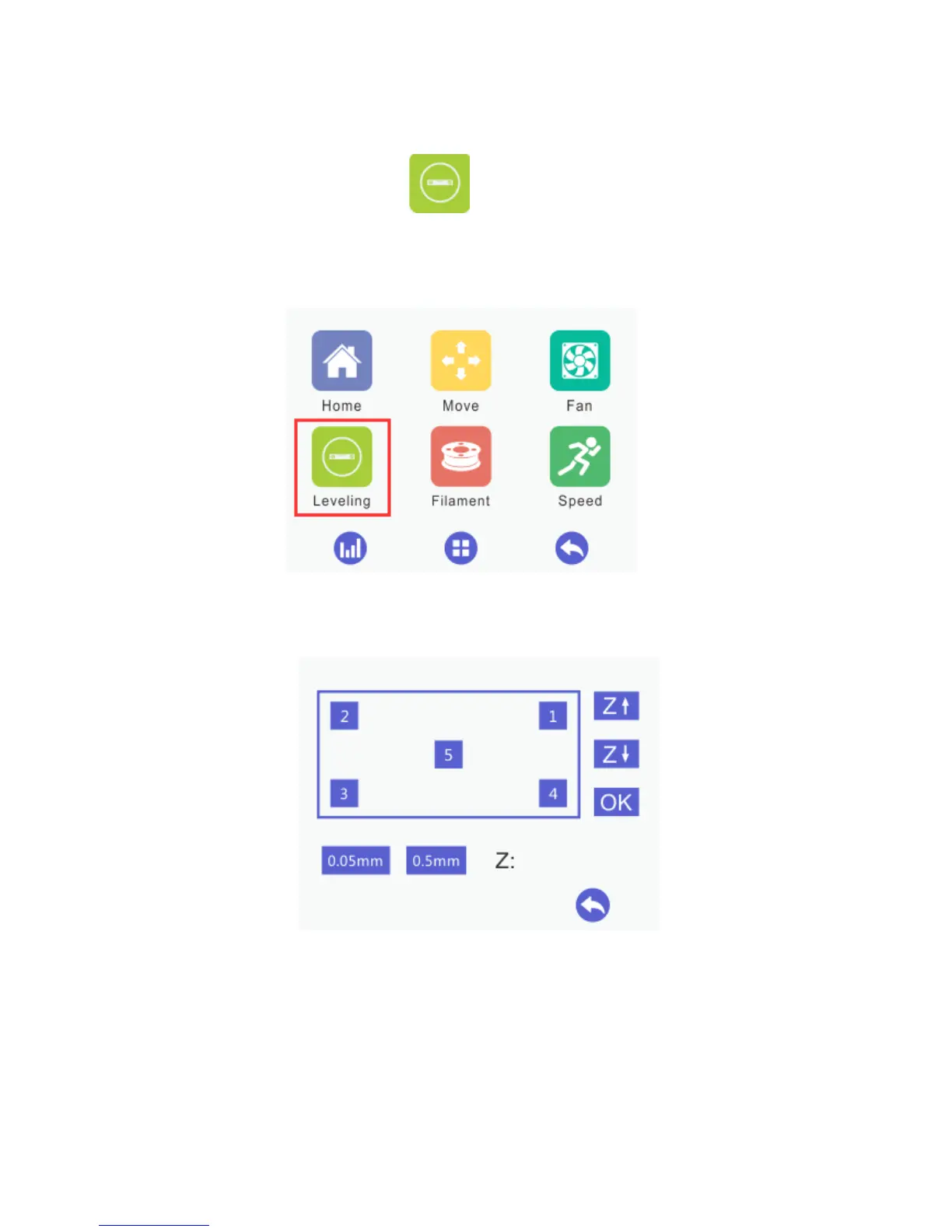

3. Leveling the Build Platform
Step1. Choose [Leveling] icon to enter the interface to start to level the build
platform. Meanwhile the motors will be homed and Z axis will move downward to Z=10mm.
Step 2. Coarse leveling. Click the leveling point 5, the extruder will move to the fifth
point. Put a piece of A4 paper between the nozzle and build platform. Slide the paper back
and forth. Stop when you feel the nozzle just start to grab a little bit.

Geeetech A30 Specifications

General

Build Volume	320 x 320 x 420 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Connectivity	USB, SD card
Frame Material	Aluminum
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Supported Filaments	PLA, ABS, PETG
Display	LCD
Power Supply	24V
Bed Temperature	Up to 110°C
Nozzle Temperature	Up to 250°C
Printing Platform	Removable glass platform
