Geeetech A30 User Manual

60
extruder from the list on the left, and then double-click on the temperature set point you wish
to edit.
6.2 How to Upgrade the Firmware?
EasyPrint 3D provides all the users with online service of upgrading firmware to
guarantee perfect printing performance.
The specific method is as follows:
1. Connect your Geeetech A30 to the computer with the USB cable.
2. Turn the printer on.

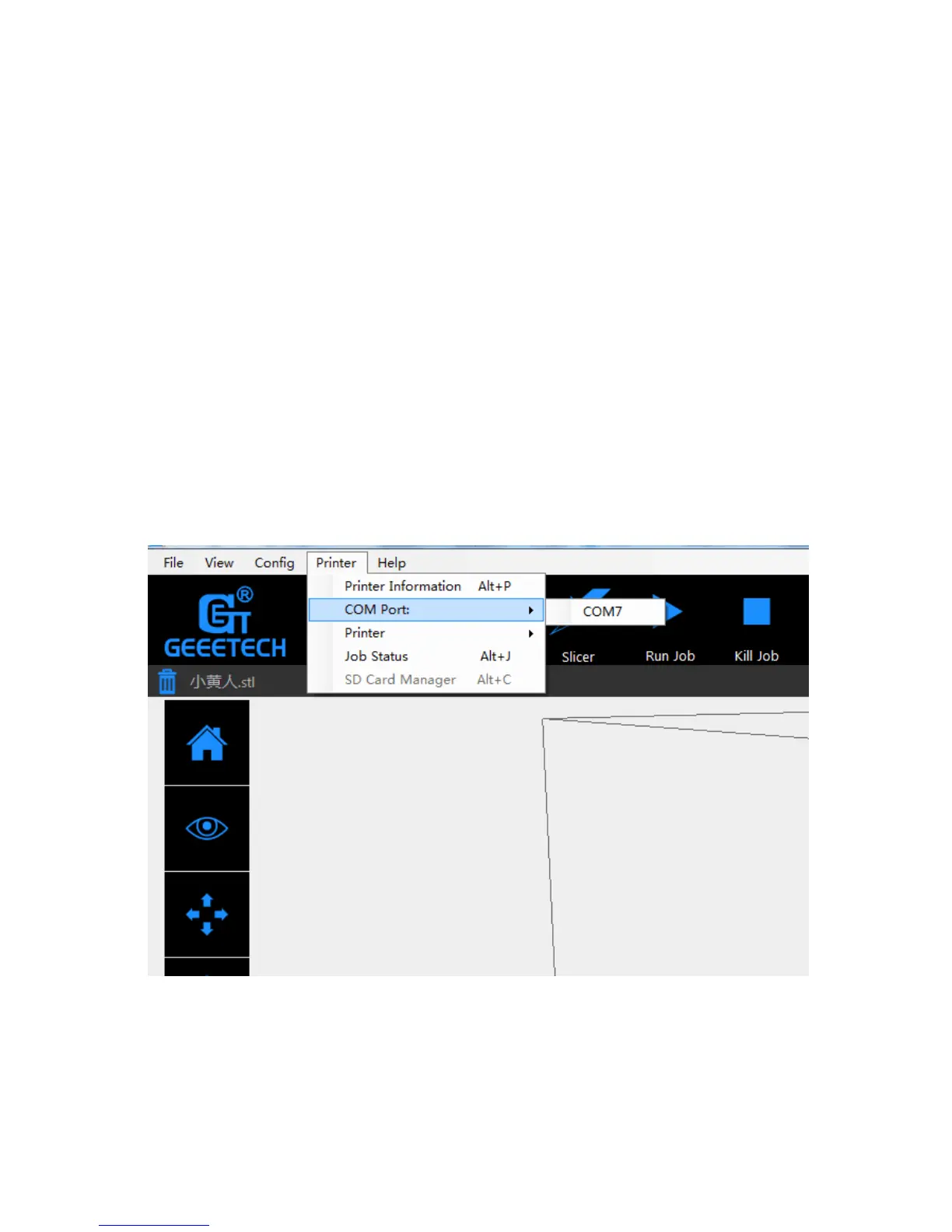

3. In Easy Print 3D, choose the COM port and the printer type.
4. Click ‘help‘> 'Update firmware'.
*Don‘t connect the printer to EasyPrint when upgrading firmware.

Geeetech A30 Specifications

General

Build Volume	320 x 320 x 420 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Connectivity	USB, SD card
Frame Material	Aluminum
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Supported Filaments	PLA, ABS, PETG
Display	LCD
Power Supply	24V
Bed Temperature	Up to 110°C
Nozzle Temperature	Up to 250°C
Printing Platform	Removable glass platform
