Geeetech A30 User Manual

25

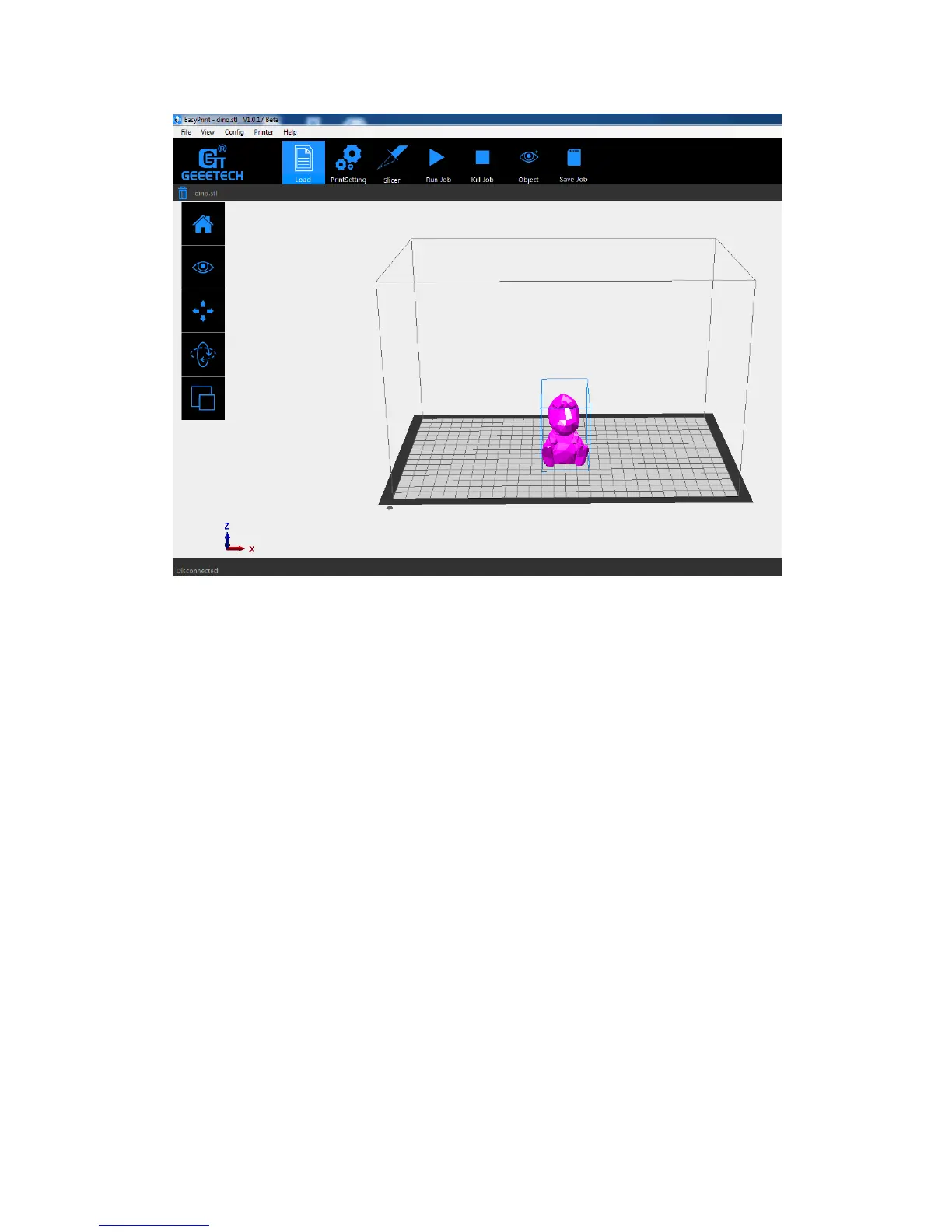

2) Print settings: click the [print settings] menu and modify the relevant parameters.
Here we take the [Quick] mode as an example.
Choose the [Quick] mode, set the printing quality as [Standard] and take the parameters
like [Infill], [Extruder temperature] and [Layer height] by default. Select the [Support] button,
according to your printing need. Finally, click [Apply] and [OK].

Geeetech A30 Specifications

General

Build Volume	320 x 320 x 420 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Connectivity	USB, SD card
Frame Material	Aluminum
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Supported Filaments	PLA, ABS, PETG
Display	LCD
Power Supply	24V
Bed Temperature	Up to 110°C
Nozzle Temperature	Up to 250°C
Printing Platform	Removable glass platform
