913287/BP0808 104 PRINTED IN U.S.A.

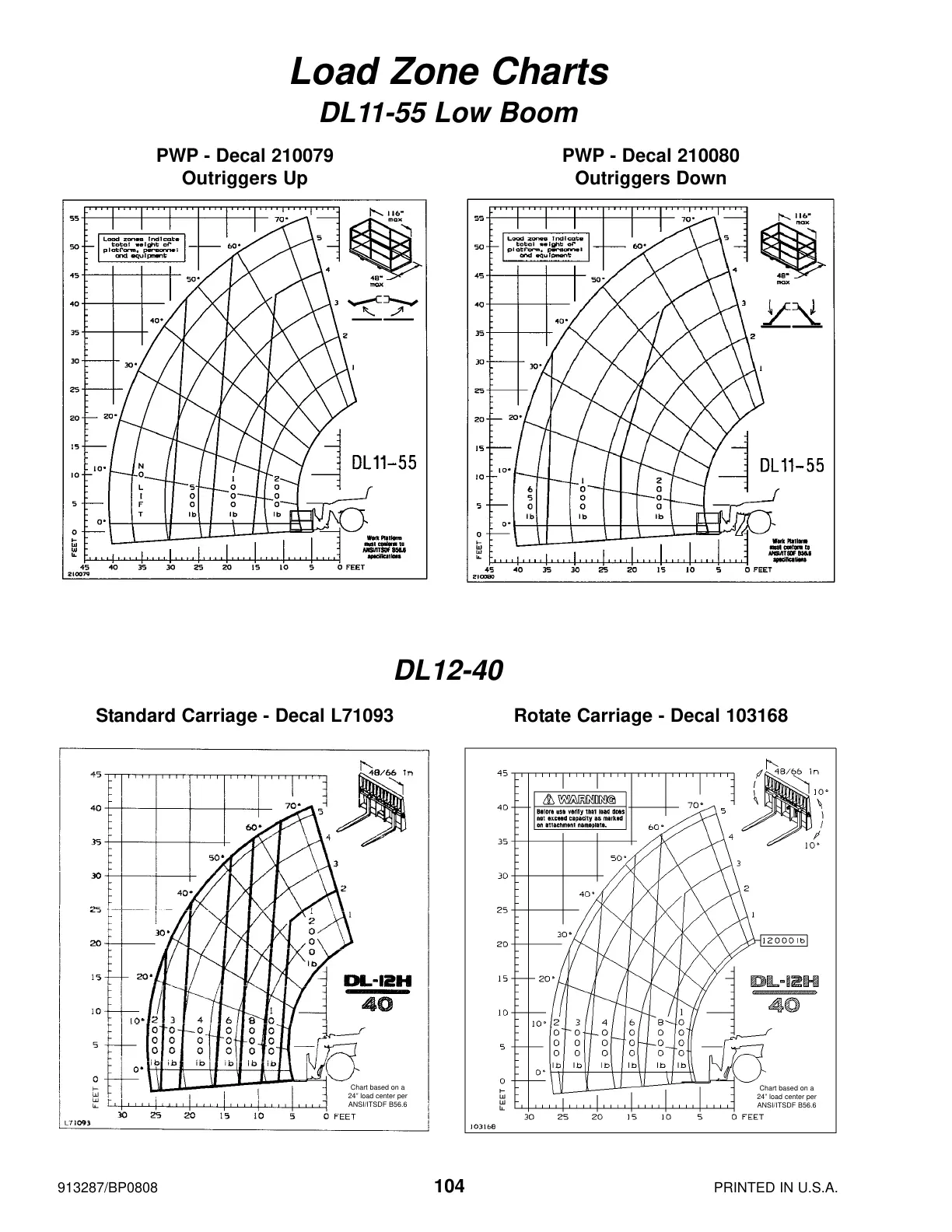

Load Zone Charts
DL11-55 Low Boom
Standard Carriage - Decal L71093 Rotate Carriage - Decal 103168
DL12-40
Chart based on a
24” load center per
ANSI/ITSDF B56.6
Chart based on a
24” load center per
ANSI/ITSDF B56.6
PWP - Decal 210079
Outriggers Up
PWP - Decal 210080
Outriggers Down
