Transporting the Loader
Park the truck or trailer on a level surface. Be
sure the vehicle and its ramps have the
weight capacity to support the loader. Make sure the vehicle sur-
face and its ramps are clear of debris and slippery material that
may reduce traction. Move the loader on and off the vehicle ramp
slowly and carefully. Failure to follow these instructions could
result in an overturn accident.
Observe all local regulations governing the loading and transporting of equip-
ment (Reference: U.S. Federal Motor Carrier Safety Regulations, Section 392).
Ensure that the hauling vehicle meets all safety requirements before loading the
skid-steer loader.
1. Block the front and rear of the hauling
vehicle’s tires.
2. If the loader has an attachment, lift it
slightly off the ground.
3. Back the loader slowly and carefully
up the ramp onto the vehicle.
4. Lower the loader attachment to the
vehicle deck, turn off the engine and
remove the key.
5. Fasten the loader to the hauling vehi-
cle at the points indicated by the tie-
down decals (Figure 27 and
Figure 28).
6. Measure the clearance height of the
loader and hauling vehicle. Post the
clearance height in the cab of the
vehicle.

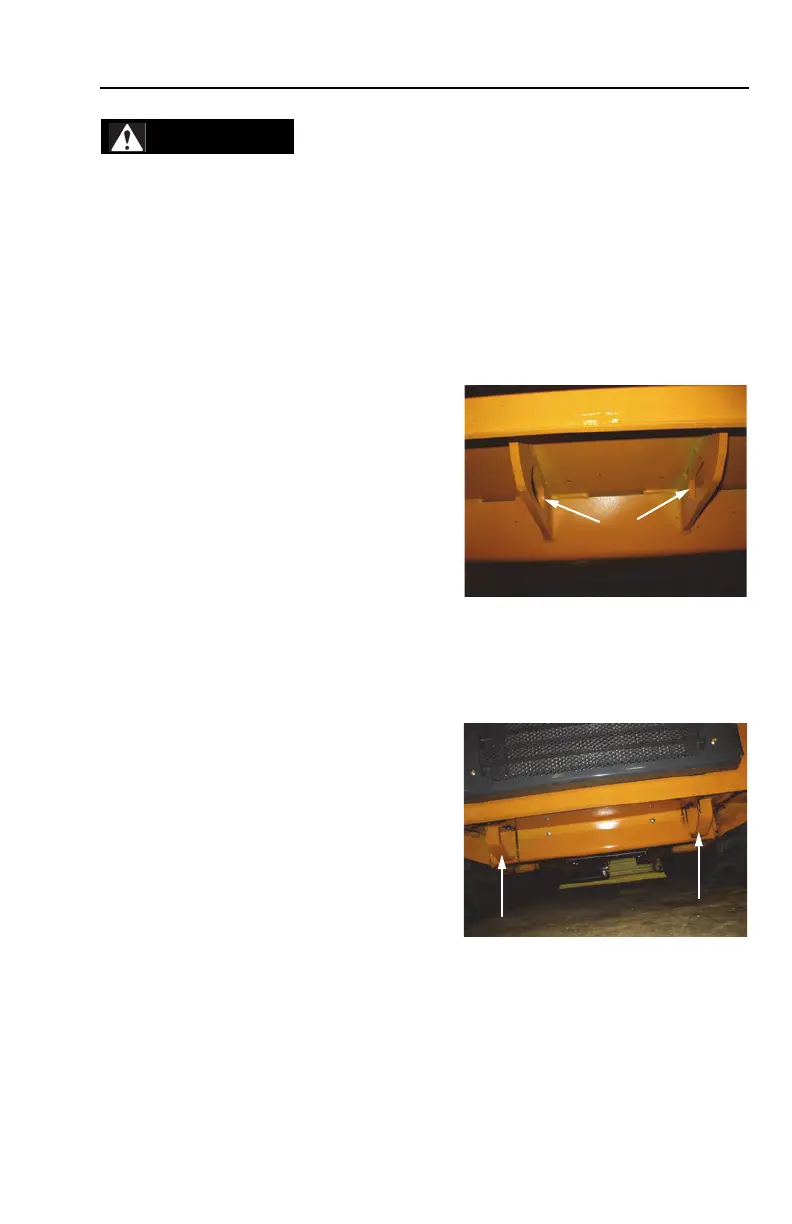

Figure 27 Front Tie-Downs /
Retrieval Points
Figure 28 Rear Tie-Downs /
Retrieval Points
