20 50950106/AP0313
Operator’s Seat
The seat is mounted on rails for rearward
and forward repositioning. A spring-
loaded lever unlocks the seat position
adjustment mechanism.
Suspension seat (optional): A weight
adjustment knob is provided for indi-
vidual operator adjustment.
Air Suspension Seat (optional): Adjust air
suspension seat by pushing in the knob on
the air seat to increase the amount of sus-
pension. Pull knob out to release air and
decrease the suspension level.
Upper-Torso Restraint
Always wear the upper-torso restraint when
operating in High speed.
The seatbelt should always be fastened during operation.
Important: Inspect the seatbelt(s) for damage before use, and replace if dam-
aged. Keep seatbelt(s) clean. Use only soap and water to wash seatbelt(s).
Cleaning solvents can cause damage to seatbelt(s).
Safety Interlock System
Hydraloc™
NEVER defeat the safety interlock system by
mechanically or electrically bypassing any
switches, relays or solenoid valves.
An interlock system is provided on the loader for operator safety. Together with
solenoid valves, switches and relays, the interlock system:
Prevents the engine from starting unless the operator is sitting on the seat and
the operator restraint bar is lowered.
Disables the lift arm, auxiliary hydraulics, attachment tilt and wheel drives
whenever the operator leaves the seat, turns the keyswitch to OFF or raises
the restraint bar.

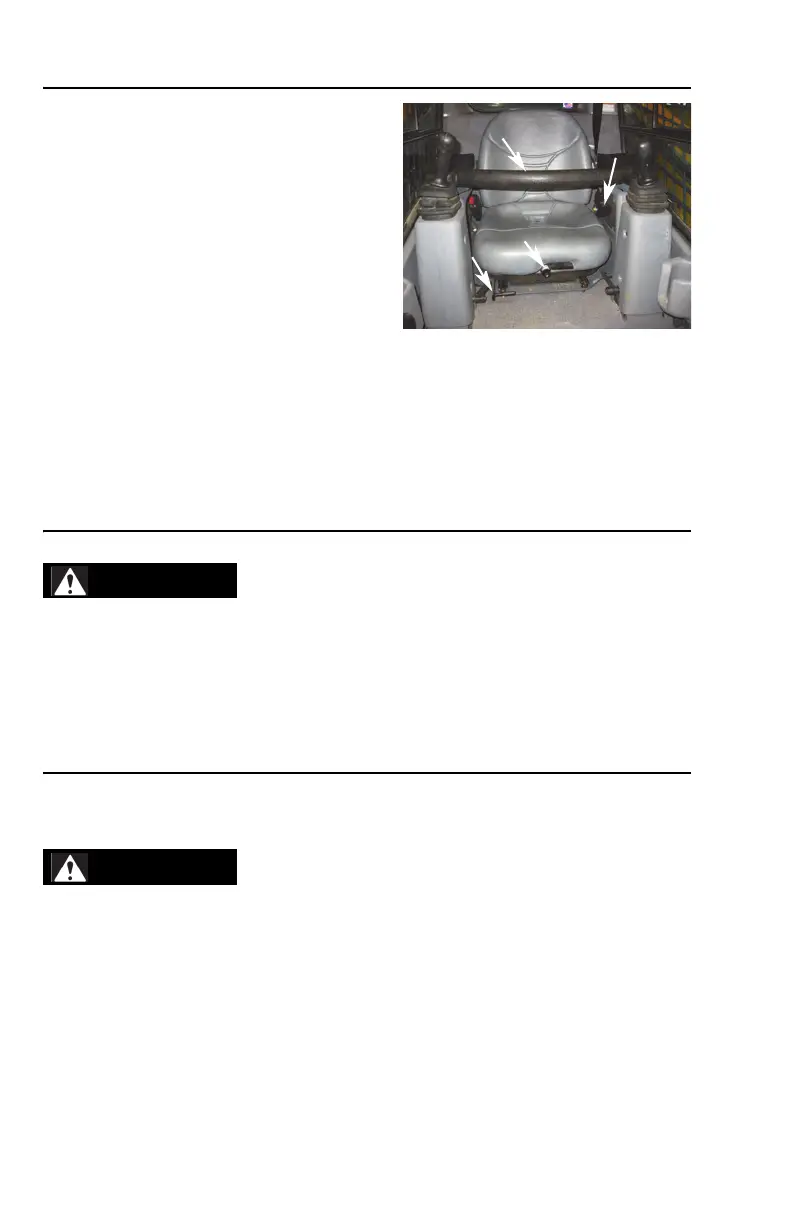

Figure 1 Operator’s Seat
1. Restraint Bar
2. Seatbelt
3. Seat Position Adjustment Lever
4. Suspension Seat Weight
Adjustment Knob (optional)
1
2
3
4
