Lubrication

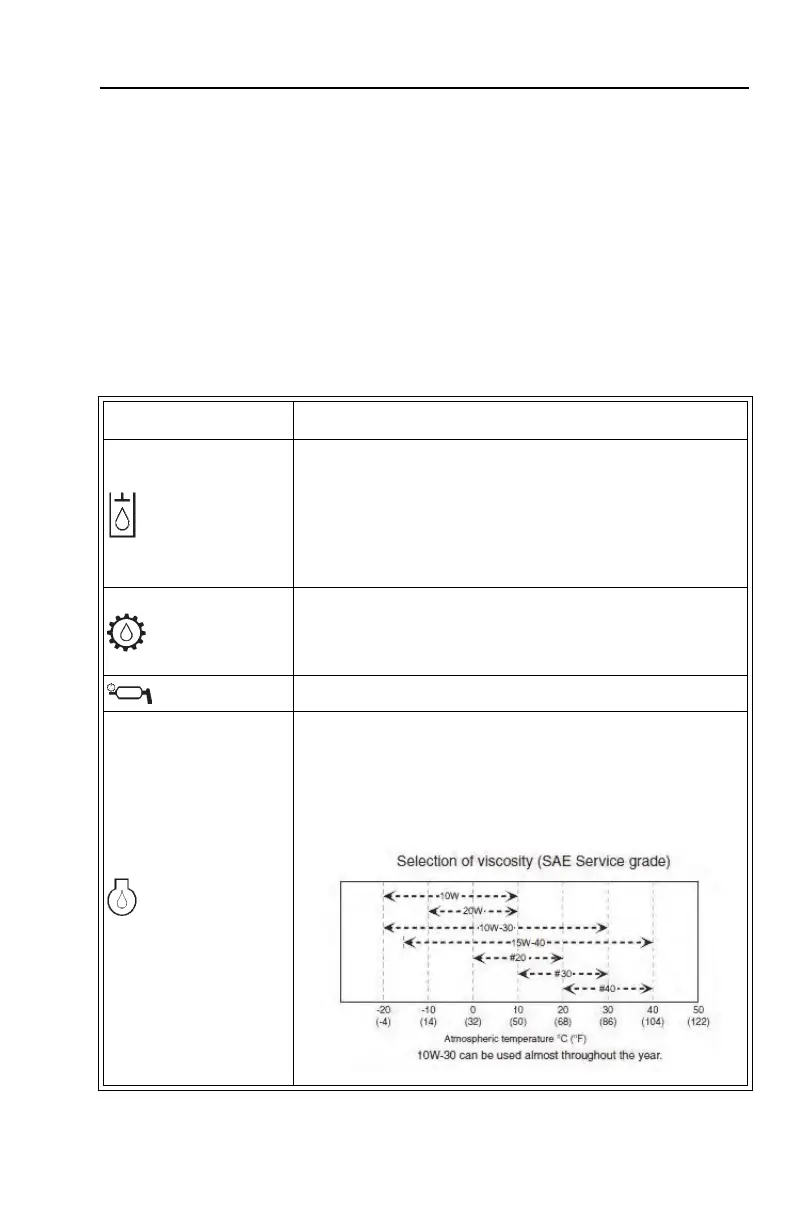

Listed below are the temperature ranges and types of lubricants for this machine.
Refer to the separate engine manual for more information regarding engine lubri-
cants, quantities and grades required.
Note: Refer to the specific service sections for detailed information on periodic
checking and replenishing of lubricants.
Refer to Figure 36 for grease fitting locations. Wipe dirt from the fittings before
greasing them to prevent contamination. Replace any missing or damaged
fittings. To minimize dirt build-up, avoid excessive greasing.
Important: Always dispose of waste lubricating oils and hydraulic fluids
according to local regulations or take to a recycling center for disposal. Do not
pour onto the ground or down the drain.
System Lubricant
Hydraulic
System Oil
Use Petro Canada HVI60, Mobil DTE 15M or equivalent, which
contain anti-rust, anti-foam and anti-oxidation additives, and
conforms to ISO VG46.
Entire System Capacity, R190: 11 U.S. gallons (41,6 L)
Entire System Capacity, R220: 12 U.S. gallons (45,4 L)
Entire System Capacity, R260: 12 U.S. gallons (45,4 L)
Bare Reservoir Capacity: 8.0 U.S. gal. (30,3) L
Chaincase Oil
Use SAE grade 10W-30 motor oil.
R190 Capacity (each side): 9.5 U.S. quarts (9,0 L)
R220 Capacity (each side): 10 U.S. quarts (9,5 L)
R260 Capacity (each side): 11 U.S. quarts (10,4 L)
Grease Fittings Use lithium-based grease.
Engine Oil
Important: Refer to the Engine Operator’s Manual for specific
engine oil recommendations.
Service Classification: API-CJ-4 SM
R190 Capacity: 9.5 U.S. quarts (9,0 L)
R220/R260 Capacity: 11.0 U.S. quarts (10,4 L)
