Loader Lowering Procedure
When service or adjustment procedures are complete, the loader can be lowered
from the raised position. To lower the loader onto its tires:
1. Using a jack or hoist, raise the front of the loader until its weight no longer
rests on the front blocks.
2. Carefully remove the blocking under the front of the loader.
3. Slowly lower the loader until the front tires are resting on the ground.
4. Repeat steps 1 through 3 for the rear of the loader. When the procedure is
finished, all four tires will be on the ground and the blocks removed from
under the loader.
Engine Compartment Access
To open the engine compart-
ment, lift the engine cover. Then
pull the rear grille latch up
(Figure 32) and carefully swing
open the rear grille. There is
another rear grille latch near the
top hinge pin of the grille to
secure the grille in an open posi-
tion.

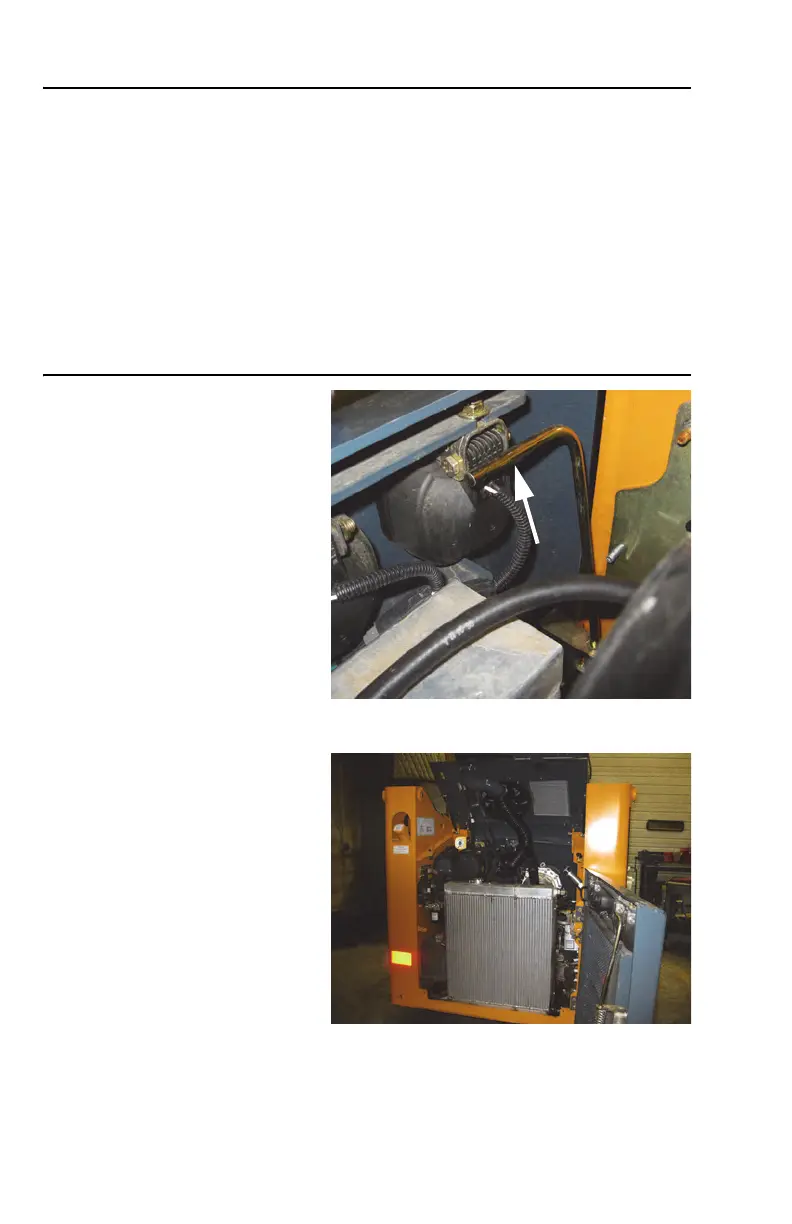

Figure 32 Rear Grille Latch Location
Figure 33 Engine Compartment
Access Door and Cover
