50950106/AP0313 87
Hydraulic System
Refer to the Maintenance Interval Chart (page 103) for service intervals. Refer to
the Replacement Parts chart (page 68) for filter part numbers.
Before servicing the hydraulic system, be
sure the lift arm is lowered.
Checking Hydraulic Oil Level
Inside the engine compartment, the loader
has a sight gauge located at the right rear
of the chassis. Check the fluid level with
the lift arm lowered and attachment
bracket on the ground (Figure 45).
Add hydraulic oil as required in the
hydraulic oil fill tube. Refer to the Lubri-
cation chart (page 73). Replace the fill
cap.
Changing Hydraulic Oil Filter
The hydraulic filter element is located to
the right of the radiator/cooler, against the
side of the chassis. To change hydraulic
filter element:
1. Park the loader on a level surface.
Shut off the engine and remove the
key.
2. Open the reservoir drain plug, located
on the inside bottom of the right riser
(Figure 47).
3. Drain the hydraulic oil out to a level
below the point where the filter
attaches to the reservoir.
Note: Unbolt the water separator from the chassis for greater access to the
hydraulic filter, if needed.

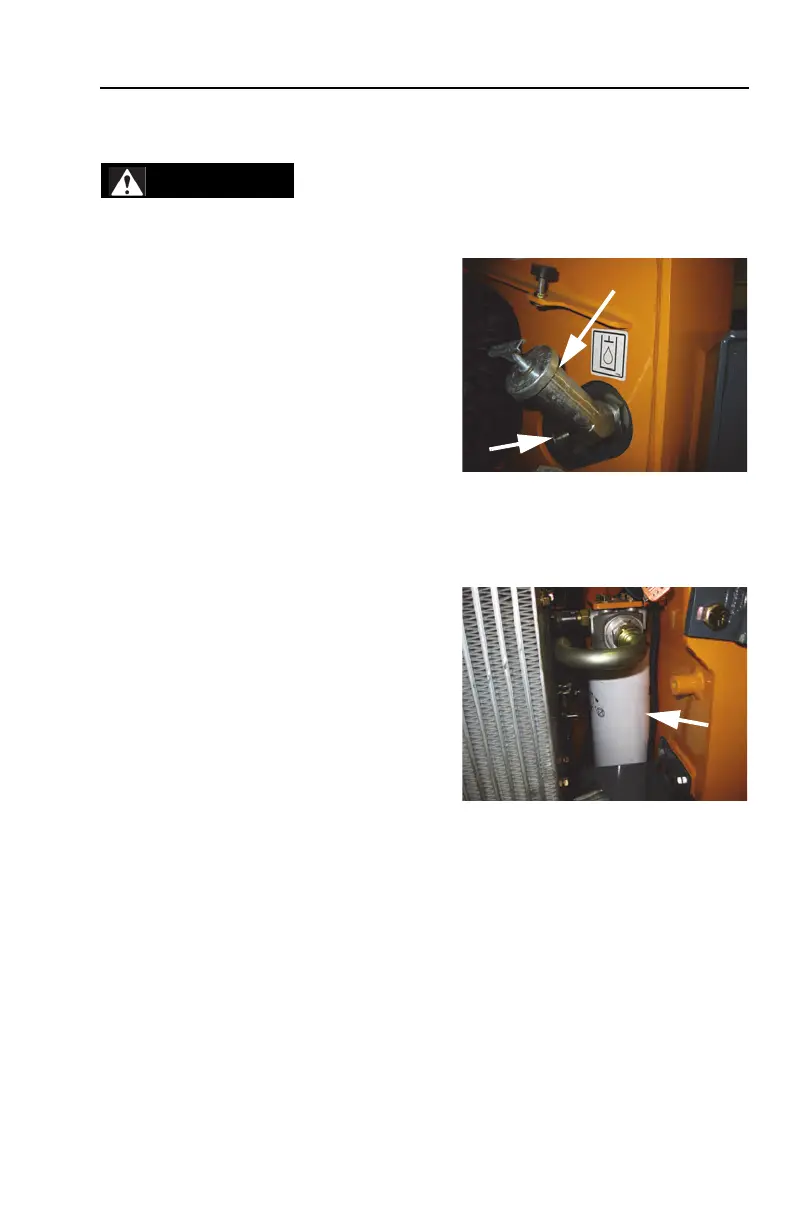

Figure 45 Sight Gauge and Fill
Tube
Figure 46 Hydraulic Oil
Filter Location
